Specifiche tecniche
| Potenza P2 (kW) | 7.5 kW |
| Fasi | 3 |
| Tensione (V) | 220-240D/380-420Y V |
| Frequenza (Hz) | 50 Hz |
| Grado di protezione | IP55 |
| Temperatura liquido max (°C) | 90 °C |
| Temperatura liquido min (°C) | 0 °C |
| Temperatura ambiente max (°C) | 55 °C |
| Materiale corpo pompa | Cast iron |
| Tenuta meccanica | BQQE |
| Peso lordo | 125 kg |
| Peso netto | 114 kg |
| Codice motore | 83U05222 |
| Codice EAN | 5711496195808 |

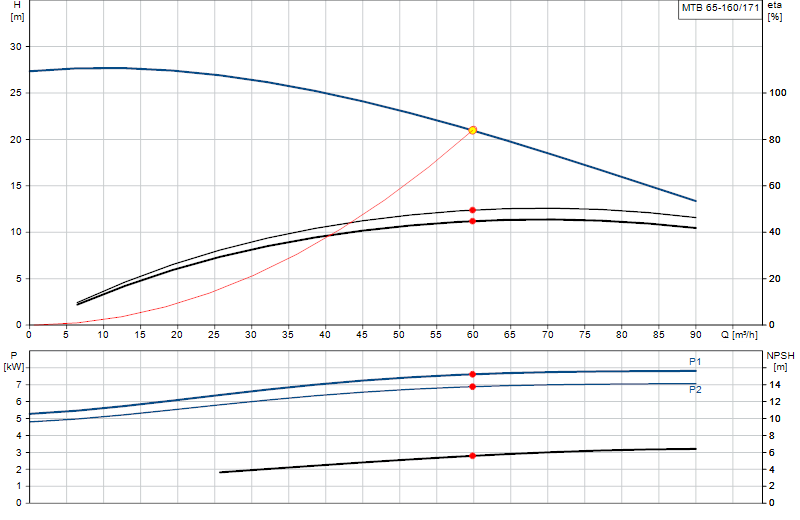

Curva di prestazione
Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
Documenti e datasheet
-
MTB (Service instructions)
Service · English 0,4 MB -
MTB
Data booklets · English 3,9 MB -
MTB (Installation and operating instructions)
Installation & operating instructions · English 0,2 MB -
MTB, ATEX-approved pumps (Installation and operating instructions)
Installation & operating instructions · English 0,1 MB -
NB, NBG, MTB (GB-CN-JP version) (Installation and operating instructions)
Installation & operating instructions · English 5,2 MB -
NB, NBG, MTB (I & O instructions)
Installation & operating instructions · English 8,1 MB -
NB, NBG, MTB (Safety instructions)
Installation & operating instructions · English 5,6 MB -
A Wide Range (English) (Product brochure)
Product Brochures · English 46,4 MB -
Grundfos Industrial Solutions - Marine pumps (Product brochure)
Product Brochures · English 1,4 MB -
Machine tools; MTB (Service Kit Catalogue)
Service · English 0,3 MB
