Specifiche tecniche
| Tipo pompa | MTA |
| Prevalenza max (m) | 9.5 m |
| Fasi | 3 |
| Frequenza (Hz) | 50 Hz |
| Grado di protezione | IP54 |
| Classe di isolamento | F |
| Convertitore di frequenza | Not prepared for VFD |
| Temperatura liquido max (°C) | 60 °C |
| Temperatura liquido min (°C) | 0 °C |
| Temperatura ambiente max (°C) | 40 °C |
| Materiale corpo pompa | Cast iron |
| Materiale girante | PAA GF50 |
| Peso lordo | 20 kg |
| Peso netto | 18.5 kg |
| Approvazioni | CE |
| Codice EAN | 5710624078815 |

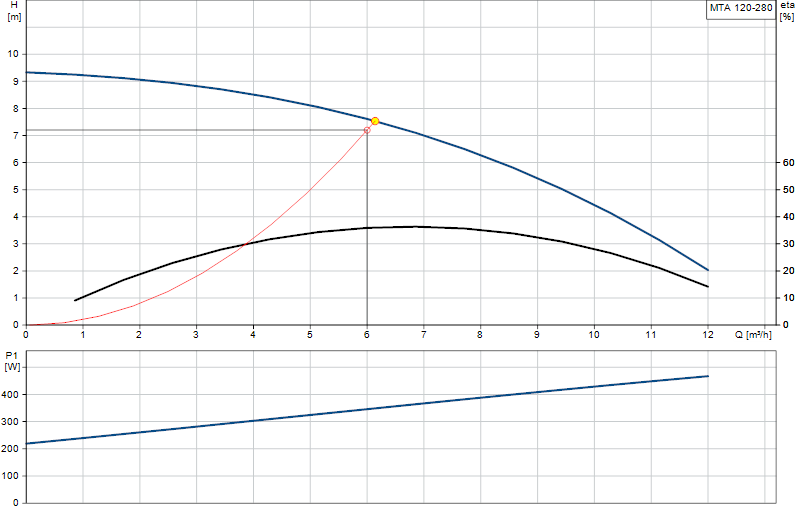

Curva di prestazione
Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
Documenti e datasheet
-
MTA (old) to MTA (new) (Data booklet)
Data booklets · English 1,1 MB -
MTR, MTRE, SPK, MTH, MTA - immersible pumps (Data booklet)
Data booklets · English 24,8 MB -
MTA (GB + JP version) (I & O instructions)
Installation & operating instructions · English 1,4 MB -
MTA, Asia version (I & O instructions)
Installation & operating instructions · English 1,8 MB -
MTA, EU version (Installation and operating instructions)
Installation & operating instructions · English 1,0 MB -
MTA, Global version (Installation and operating instructions)
Installation & operating instructions · English 1,2 MB -
A Wide Range (English) (Product brochure)
Product Brochures · English 46,4 MB -
IMMERSIBLE PUMPS FOR INDUSTRY, MTR, MTH, MTA, MTD, MTS (Product brochure)
Product Brochures · English 5,3 MB -
Machine tool (Product brochure)
Product Brochures · English 0,7 MB -
PRECISION AND FLEXIBILITY WHERE IT REALLY MATTERS (Product brochure)
Product Brochures · English 3,1 MB -
Machine tools; MTA, MTAD (Service Kit Catalogue)
Service · English 0,2 MB -
MTA(D) (Service kit instruction)
Service · English 0,4 MB
