Specifiche tecniche
| Portata nominale (m³/h) | 14.92 m³/h |
| Prevalenza nominale (m) | 9.505 m |
| Indice di efficienza energetica (EEI) | 0.18 |
| Fasi | 1 |
| Tensione nominale | 230 V |
| Frequenza (Hz) | 50 / 60 Hz |
| Corrente nominale max (A) | 2.75 A |
| Grado di protezione | IPX4D |
| Classe di isolamento | F |
| Temperatura liquido max (°C) | 110 °C |
| Temperatura liquido min (°C) | -10 °C |
| Temperatura ambiente max (°C) | 40 °C |
| Pressione max di esercizio | 10 bar |
| Tipo di attacco | DIN |
| Pressione nominale attacco | PN 6/10 |
| Interasse (mm) | 250 mm |
| Materiale corpo pompa | Cast iron |
| Materiale girante | Composite |
| Peso lordo | 35.4 kg |
| Peso netto | 31.6 kg |
| Approvazioni | CE,VDE,EAC,MOROCCO,UKCA,TSE, |
| Codice EAN | 5710626495443 |

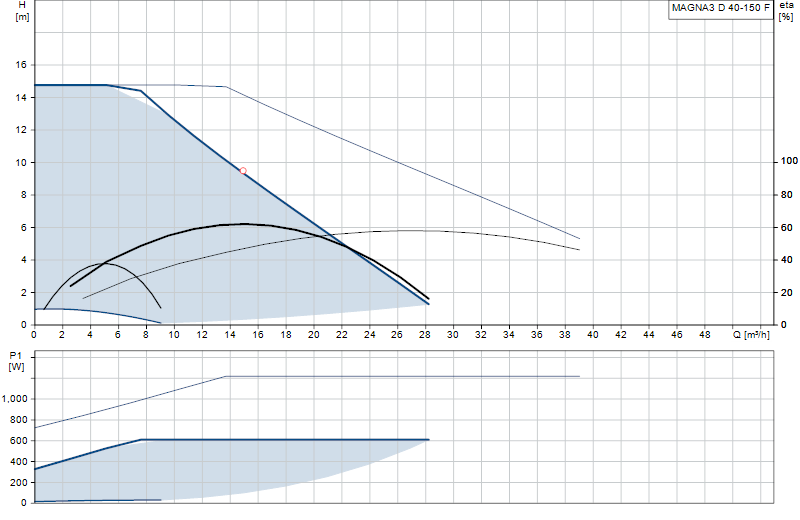

Curva di prestazione
Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
Documenti e datasheet
-
MAGNA3 model A, B and C, data booklet
Data booklets · English 38,9 MB -
MAGNA3 Model D, Data booklet
Data booklets · English 66,5 MB -
MAGNA3 Model E, Databooklet
Data booklets · English 43,4 MB -
MAGNA3 model A, B and C, data sheet
Data sheets · English 0,3 MB -
MAGNA3 model D, data sheet
Data sheets · English 0,3 MB -
MAGNA3 Model E (installation and operating instructions)
Installation & operating instructions · English 22,8 MB -
MAGNA3 Model E (Safety instruction)
Installation & operating instructions · English 3,7 MB -
MAGNA3 models A, B, C and D (Safety instructions)
Installation & operating instructions · English 2,5 MB -
MAGNA3, Model A, B, C (Installation and operating instructions)
Installation & operating instructions · English 9,9 MB -
MAGNA3, Model D (I & O instructions)
Installation & operating instructions · English 65,3 MB -
MAGNA3 model D, Terminal connected (Quick Guide)
Quick Guides · English 5,7 MB -
MAGNA3 Model E, Display Menu Overview (GB/DE version) (Quickguide)
Quick Guides · English 5,7 MB -
MAGNA3 Model E, Plug connected (Quickguide)
Quick Guides · English 7,0 MB -
MAGNA3 Model E, Terminal connected (Quickguide)
Quick Guides · English 7,0 MB -
MAGNA3, Plug connected (Quick Guide)
Quick Guides · English 6,0 MB -
GRUNDFOS iSOLUTIONS IN COMMERCIAL BUILDINGS (Product brochure)
Product Brochures · English 9,2 MB -
GRUNDFOS iSOLUTIONS in Commercial Buildings (Product brochures)
Product Brochures · English 9,1 MB -
Grundfos iSOLUTIONS in Commercial Buildings (Product brochures)
Product Brochures · English 6,2 MB -
GRUNDFOS iSOLUTIONS IN COMMERCIAL BUILDINGS, INDIAN VERSION (Product brochure)
Product Brochures · English 9,1 MB -
GRUNDFOS iSOLUTIONS IN COMMERCIAL BUILDINGS, Philippines version (Product brochure)
Product Brochures · English 9,2 MB -
GRUNDFOS iSOLUTIONS IN COMMERCIAL BUILDINGS, Singapore VERSION (Product brochure)
Product Brochures · English 9,2 MB -
MAGNA3, More than a pump (Product brochure)
Product Brochures · English 2,3 MB -
MAGNA3 D - Twin pump (Enviromental Product Declaration)
EPD · English 0,1 MB -
MAGNA, MAGNA1, MAGNA3, MAGNA3 D, MAGNA3 N, International (Service Kit Catalogue)
Service · English 2,4 MB -
MAGNA1, MAGNA3 - Condensation jacket for MAGNA 1 and 3 (Service kit instructions)
Service · English 2,0 MB -
MAGNA1, MAGNA3 Terminal connected versions, Front cover (Service kit instruction)
Service · English 0,4 MB -
MAGNA1, MAGNA3, Terminal connected versions, Pump head, clamp, O-ring, (Service kit instruction)
Service · English 1,6 MB -
MAGNA3 (Plug- and terminal-connected versions / equipotential bonding wire) (Service kit instructions)
Service · English 3,9 MB -
MAGNA3 (Plug-connected versions / Pump head - clamp - O-ring) (Service kit instruction)
Service · English 2,4 MB -
MAGNA3, Cooling sensor with cable (Service kit instructions)
Service · English 3,3 MB -
MAGNA3, Plug- and terminal-connected versions / Sensor with cable (Service kit instructions)
Service · English 4,5 MB -
MAGNA3, Plug-connected versions / Control box - Front cover (Service kit instructions)
Service · English 4,0 MB -
MAGNA3, Plug-connected versions / Front cover and display (Service kit instructions)
Service · English 2,2 MB -
MAGNA3, Sensor cap, Plug and terminal connected versions (Service kit instruction)
Service · English 2,1 MB -
MAGNA3, Terminal-connected versions / Display panel (Service kit instructions)
Service · English 1,9 MB -
MAGNA3, Terminal-connected versions, Control box (Service kit instruction)
Service · English 3,1 MB
