Specifiche tecniche
| Portata nominale (m³/h) | 38 m³/h |
| Prevalenza nominale (m) | 10.08 m |
| Indice di efficienza energetica (EEI) | 0.17 |
| Fasi | 1 |
| Tensione nominale | 230 V |
| Frequenza (Hz) | 50 / 60 Hz |
| Corrente nominale max (A) | 7 A |
| Grado di protezione | IPX4D |
| Classe di isolamento | F |
| Temperatura liquido max (°C) | 110 °C |
| Temperatura liquido min (°C) | -10 °C |
| Temperatura ambiente max (°C) | 40 °C |
| Pressione max di esercizio | 6 bar |
| Tipo di attacco | DIN |
| Pressione nominale attacco | PN 6 |
| Interasse (mm) | 450 mm |
| Materiale corpo pompa | Cast iron |
| Materiale girante | Composite |
| Peso lordo | 38.2 kg |
| Peso netto | 34.4 kg |
| Approvazioni | CE,VDE,EAC,MOROCCO,UKCA,TSE, |
| Codice EAN | 5710626493906 |

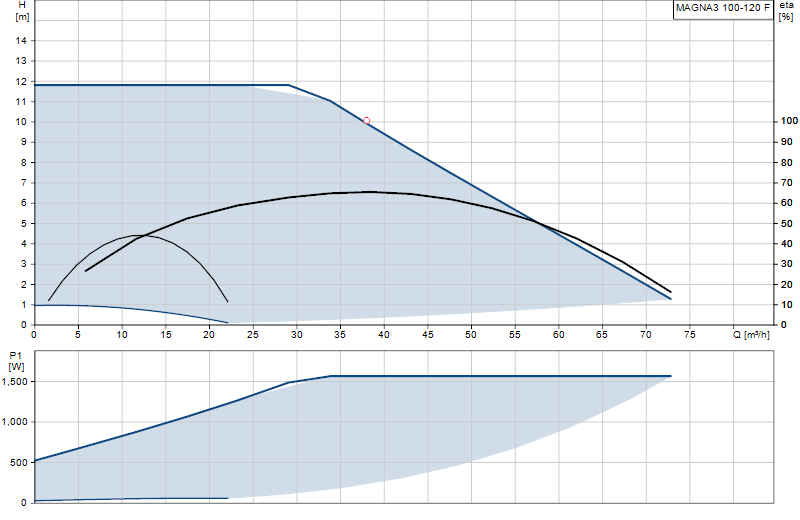

Curva di prestazione
