Specifiche tecniche
| Indice di efficienza energetica (EEI) | 0.23 |
| Fasi | 1 |
| Tensione nominale | 230 V |
| Frequenza (Hz) | 50 / 60 Hz |
| Corrente nominale max (A) | 1.25 A |
| Grado di protezione | IPX4D |
| Classe di isolamento | F |
| Temperatura liquido max (°C) | 110 °C |
| Temperatura liquido min (°C) | -10 °C |
| Temperatura ambiente max (°C) | 40 °C |
| Pressione max di esercizio | 10 bar |
| Tipo di attacco | DIN |
| Pressione nominale attacco | PN 6/10 |
| Interasse (mm) | 220 mm |
| Materiale corpo pompa | Cast iron |
| Materiale girante | Composite |
| Peso lordo | 36.3 kg |
| Peso netto | 32.4 kg |
| Approvazioni | CE,VDE,EAC,MOROCCO,UKCA,TSE, |
| Codice EAN | 5712608942815 |

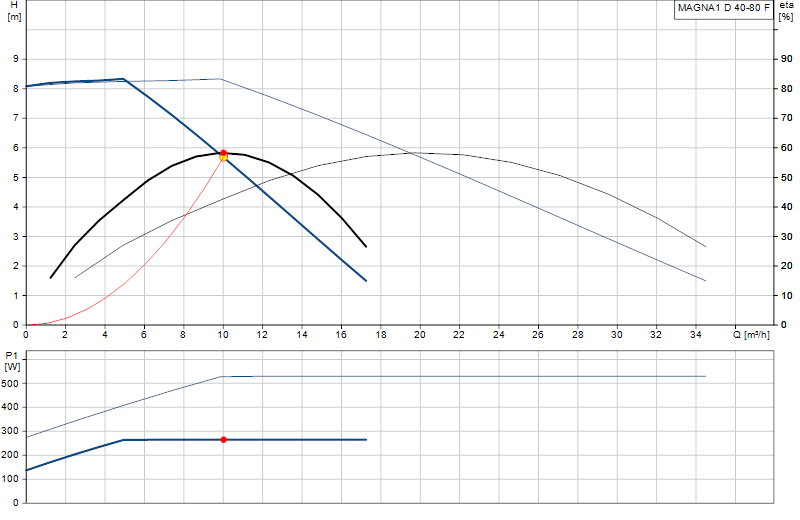

Curva di prestazione
Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
Documenti e datasheet
-
MAGNA1 model A and B, data booklet
Data booklets · English 24,6 MB -
MAGNA1, model C, (Data booklet)
Data booklets · English 14,3 MB -
MAGNA1 model A and B, data sheet
Data sheets · English 0,5 MB -
New MAGNA1 model C, data sheet
Data sheets · English 0,3 MB -
MAGNA1 model A and B (Safety instructions)
Installation & operating instructions · English 1,8 MB -
MAGNA1 model A and B (terminal-connected) (Safety instructions)
Installation & operating instructions · English 1,3 MB -
MAGNA1 model A and B, (plug-connected), safety instructions
Installation & operating instructions · English 1,2 MB -
MAGNA1 model A and B, installation and operating instructions
Installation & operating instructions · English 7,8 MB -
MAGNA1 TWIN-HEAD PUMP, PAIRING/UNPAIRING, Model C (Installation and operating instructions)
Installation & operating instructions · English 0,4 MB -
MAGNA1, Model C (I & O instructions)
Installation & operating instructions · English 19,9 MB -
MAGNA1, Model C (Safety instructions)
Installation & operating instructions · English 6,2 MB -
MAGNA1 model A and B, Plug connected (Quick Guide)
Quick Guides · English 4,1 MB -
MAGNA1 model A and B, Terminal connected (Quick Guide)
Quick Guides · English 4,4 MB -
MAGNA1 Valid from Model C, terminal connected (Quick Guide)
Quick Guides · English 12,0 MB -
MAGNA1, VALID FROM MODEL C, plug connected (Quick Guide)
Quick Guides · English 6,1 MB -
GRUNDFOS iSOLUTIONS IN COMMERCIAL BUILDINGS (Product brochure)
Product Brochures · English 9,2 MB -
GRUNDFOS iSOLUTIONS in Commercial Buildings (Product brochures)
Product Brochures · English 9,1 MB -
Grundfos iSOLUTIONS in Commercial Buildings (Product brochures)
Product Brochures · English 6,2 MB -
GRUNDFOS iSOLUTIONS IN COMMERCIAL BUILDINGS, INDIAN VERSION (Product brochure)
Product Brochures · English 9,1 MB -
GRUNDFOS iSOLUTIONS IN COMMERCIAL BUILDINGS, Philippines version (Product brochure)
Product Brochures · English 9,2 MB -
GRUNDFOS iSOLUTIONS IN COMMERCIAL BUILDINGS, Singapore VERSION (Product brochure)
Product Brochures · English 9,2 MB -
THE NEW MAGNA1, model C (Product brochure)
Product Brochures · English 1,4 MB -
MAGNA, MAGNA1, MAGNA3, MAGNA3 D, MAGNA3 N, International (Service Kit Catalogue)
Service · English 2,4 MB -
MAGNA1 model C, Terminal-connected versions / Control box (Service kit instructions)
Service · English 2,8 MB -
MAGNA1, MAGNA3 - Condensation jacket for MAGNA 1 and 3 (Service kit instructions)
Service · English 2,0 MB -
MAGNA1, MAGNA3 Terminal connected versions, Front cover (Service kit instruction)
Service · English 0,4 MB -
MAGNA1, MAGNA3, Plug connected versions, Pump head, clamp, O-ring, (Service kit instruction)
Service · English 1,6 MB -
MAGNA1, MAGNA3, Terminal connected versions, Pump head, clamp, O-ring, (Service kit instruction)
Service · English 1,6 MB -
MAGNA1, Plug connected versions, Control box, (Service kit instruction)
Service · English 1,5 MB
Codici equivalenti
Tabella di intercambiabilità e cross-reference per 99221308: equivalenti di altre marche disponibili a catalogo.
Wilo Stratos 40/1-8
