Specifiche tecniche
| Portata nominale (m³/h) | 4680 m³/h |
| Prevalenza nominale (m) | 70.05 m |
| Potenza P2 (kW) | 1250 kW |
| Fasi | 3 |
| Tensione (V) | 10000 V |
| Frequenza (Hz) | 50 Hz |
| Grado di protezione | IP55 (Protect. water jets/dust) |
| Temperatura liquido max (°C) | 100 °C |
| Temperatura liquido min (°C) | 0 °C |
| Temperatura ambiente max (°C) | 40 °C |
| Pressione max di esercizio | 16 bar |
| Pressione nominale attacco | PN 16 |
| Materiale girante | Stainless steel |
| Tenuta meccanica | DBQV |
| Peso lordo | 14500 kg |
| Peso netto | 11700 kg |
| Approvazioni | EAC |
| Codice motore | 99760805 |
| Codice EAN | 5715468835600 |

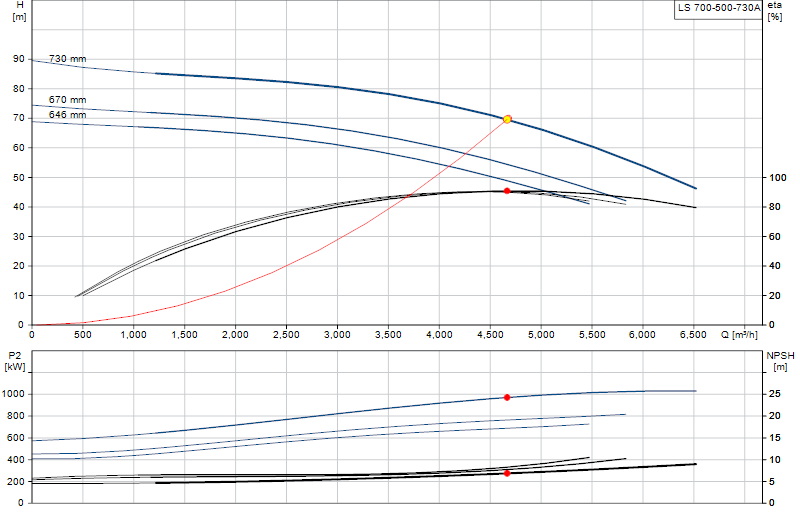

Curva di prestazione
Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
