LS 65-50-241B Grundfos
Grundfos

LS 65-50-241B

Codice: 99729440 EAN: 5713833498559
Tipo LS
Richiesta offerta

Specifiche tecniche

Portata nominale (m³/h)72 m³/h
Prevalenza nominale (m)75 m
Potenza P2 (kW)30 kW
Fasi3
Tensione (V)380-400D/660-690Y V
Frequenza (Hz)50 Hz
Grado di protezioneIP55 (Protect. water jets/dust)
Temperatura liquido max (°C)100 °C
Temperatura liquido min (°C)0 °C
Temperatura ambiente max (°C)40 °C
Pressione max di esercizio10 bar
Pressione nominale attaccoPN 10
Materiale giranteStainless steel
Tenuta meccanicaBBQE
Peso lordo381 kg
Peso netto346 kg
ApprovazioniEAC
Codice motore99546152
Codice EAN5713833498559

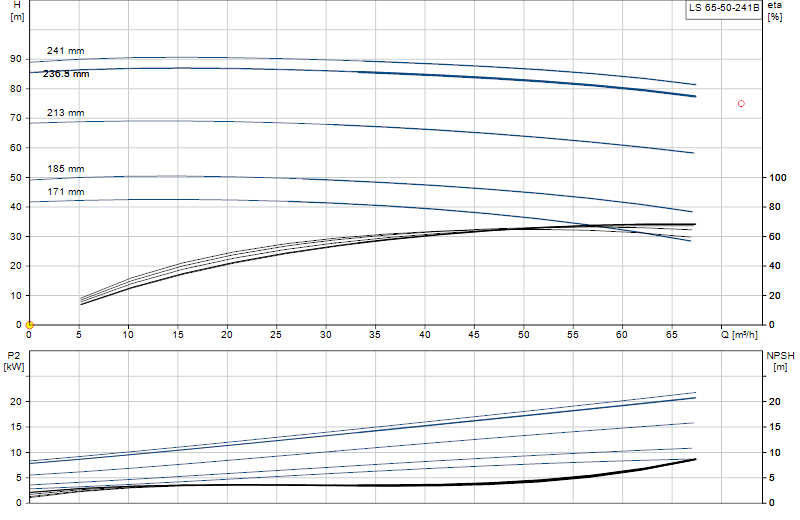

Curva di prestazione

Curva di prestazione LS 65-50-241B

Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
