Specifiche tecniche
| Portata nominale (m³/h) | 1010 m³/h |
| Prevalenza nominale (m) | 35.6 m |
| Potenza P2 (kW) | 132 kW |
| Fasi | 3 |
| Tensione (V) | 380-420/660-725 V |
| Frequenza (Hz) | 50 Hz |
| Grado di protezione | IP55 |
| Temperatura liquido max (°C) | 100 °C |
| Temperatura liquido min (°C) | 0 °C |
| Temperatura ambiente max (°C) | 40 °C |
| Pressione max di esercizio | 16 bar |
| Pressione nominale attacco | PN 16 |
| Materiale girante | Silicon bronze |
| Tenuta meccanica | BBVP |
| Peso lordo | 3030 kg |
| Peso netto | 2810 kg |
| Approvazioni | CE,EAC |
| Codice motore | 92848355 |
| Codice EAN | 5713829855816 |

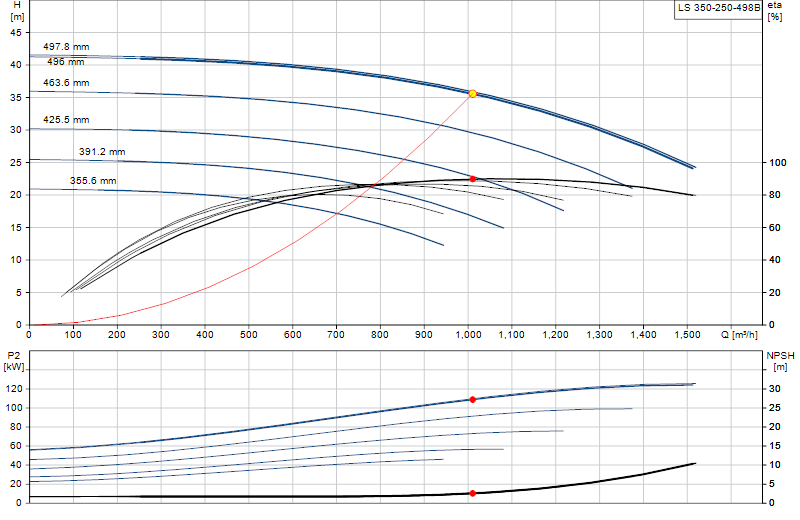

Curva di prestazione
Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
