KPL.1000.90.10.T.50.19.E.38 Grundfos

Grundfos

KPL.1000.90.10.T.50.19.E.38

Codice: 99551898 EAN: 5713830916445

Richiesta offerta

Specifiche tecniche

Portata nominale (m³/h)	1990 l/s
Prevalenza nominale (m)	3.9 m
Prevalenza max (m)	3.9 m
Fasi	3
Tensione (V)	380 V
Frequenza (Hz)	50 Hz
Grado di protezione	IP68
Classe di isolamento	F
Temperatura ambiente max (°C)	40 °C
Pressione max di esercizio	10 bar
Materiale corpo pompa	Cast iron
Materiale girante	Stainless steel
Larghezza (mm)	2675 mm
Peso lordo	2910 kg
Peso netto	2570 kg
Approvazioni	CE,EAC
Codice EAN	5713830916445

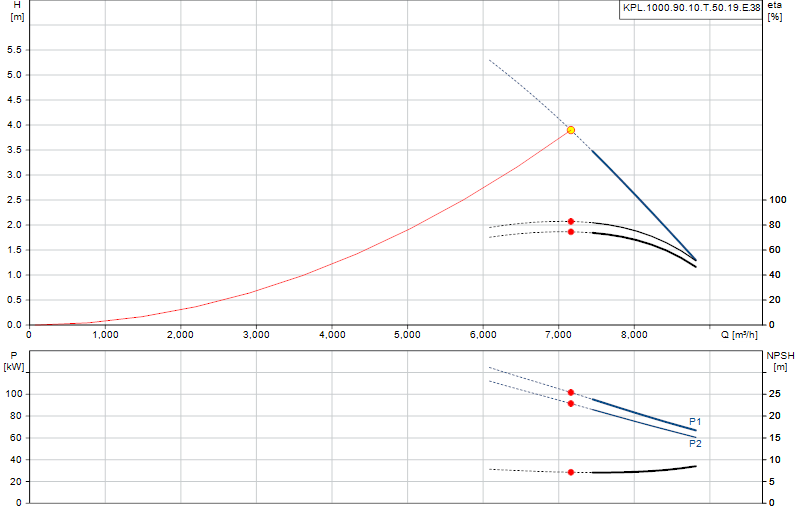

Curva di prestazione

Curva di prestazione KPL.1000.90.10.T.50.19.E.38

Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.

Documenti e datasheet

KPL, KWM (Service instruction)
Service · English 10,5 MB
Oil service kit (KPL.700-1400, KWM 700-1400) (Service instruction)
Service · English 2,8 MB
GATE PUMP PUMPING STATION (Data booklet)
Data booklets · English 1,5 MB
KPL and KWM Pump Accessories (Data booklet)
Data booklets · English 2,9 MB
KPL and KWM Pumps, Pump Accessories (Data booklet)
Data booklets · English 2,6 MB
KPL, KPG and KWM (11-700 kW) (Data booklet)
Data booklets · English 18,1 MB
Correction sheet - KPL, KPG, KWM
Installation & operating instructions · English 0,2 MB
KPL, KPG and KWM (Safety instructions)
Installation & operating instructions · English 1,5 MB
KPL, KPG and KWM, 11-700 kW, 50 Hz, 11-800 kW, 60 Hz, DIN (Installation and operating instructions)
Installation & operating instructions · English 2,1 MB
Monitoring Unit GU02 (Installation and operating instructions)
Installation & operating instructions · English 1,2 MB
Relay Unit - GU01 (Installation and operating instructions)
Installation & operating instructions · English 0,6 MB
A Wide Range (English) (Product brochure)
Product Brochures · English 46,4 MB
Compact Suction Intake, Perfect solution for water intake (Product brochure)
Product Brochures · English 5,1 MB
GRUNDFOS FMC (FLOOD MITIGATION CONTROLLER) (Product brochure)
Product Brochures · English 0,8 MB
GRUNDFOS iSOLUTIONS FOR WATER UTILITY APPLICATIONS (Product brochure)
Product Brochures · English 3,4 MB
GRUNDFOS WATER UTILITY (Flood Control) (Product brochure)
Product Brochures · English 6,9 MB
GRUNDFOS WATER UTILITY (OPTIMISED DESIGN OF STORMWATER TANKS) (Product brochure)
Product Brochures · English 8,2 MB
Industrial Pump Handbook (Handbook)
Product Brochures · English 22,6 MB
KPL and KWM (11-700 kW) (Product brochure)
Product Brochures · English 4,3 MB
OPTIMISED WATER SOLUTIONS, India version (Product brochure)
Product Brochures · English 2,5 MB
Process Driven Engineering (Leaflet)
Product Brochures · English 5,7 MB
Water Utility range (Product brochure)
Product Brochures · English 3,9 MB
KPL, KWM (Recommended spare parts) (Service Kit Catalogue)
Service · English 0,1 MB

Alternative equivalenti

Pompe della stessa classe idraulica di 99551898 (portata e prevalenza equivalenti), disponibili a catalogo.
