Specifiche tecniche
| Portata nominale (m³/h) | 4266 m³/h |
| Prevalenza nominale (m) | 3.7 m |
| Prevalenza max (m) | 4.8 m |
| Fasi | 3 |
| Tensione (V) | 400 V |
| Frequenza (Hz) | 50 Hz |
| Grado di protezione | IP68 |
| Classe di isolamento | F |
| Temperatura ambiente max (°C) | 40 °C |
| Pressione max di esercizio | 10 bar |
| Tipo di attacco | DIN |
| Materiale corpo pompa | Cast iron |
| Materiale girante | Stainless steel |
| Larghezza (mm) | 1530 mm |
| Peso lordo | 1480 kg |
| Peso netto | 1250 kg |
| Approvazioni | CE,EAC |
| Codice EAN | 5713830914229 |

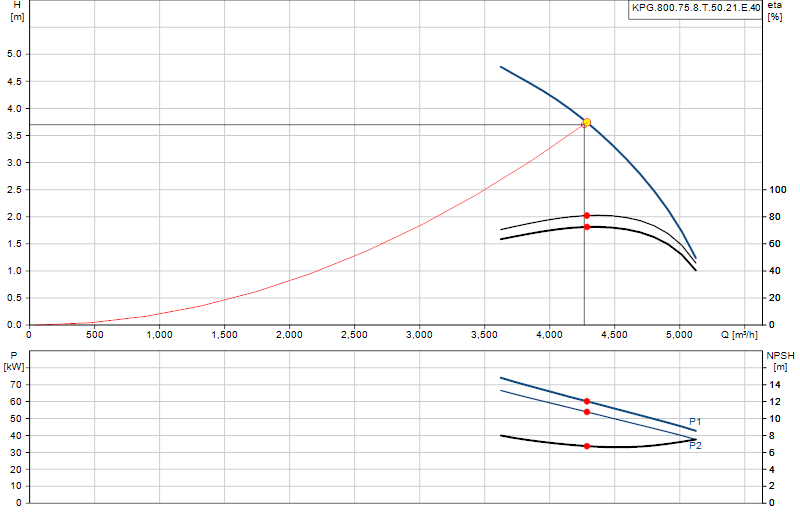

Curva di prestazione
Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
