Specifiche tecniche
| Portata nominale (m³/h) | 60 m³/h |
| Prevalenza nominale (m) | 59.1 m |
| Fasi | 3 |
| Tensione nominale | 380-415 V |
| Frequenza (Hz) | 50 Hz |
| Grado di protezione | IP54 |
| Temperatura liquido max (°C) | 60 °C |
| Temperatura liquido min (°C) | 5 °C |
| Peso lordo | 495 kg |
| Peso netto | 441 kg |
| Codice EAN | 5700314237677 |

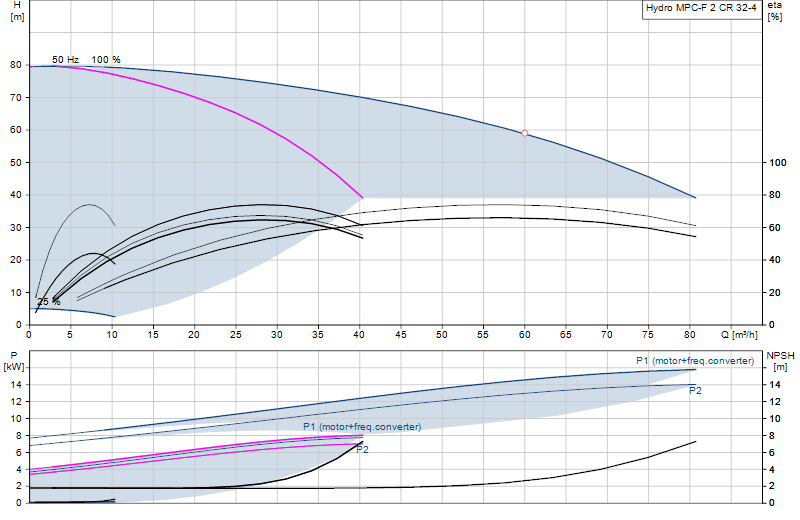

Curva di prestazione
Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
Documenti e datasheet
-
Hydro MPC, with CU 351 (Service instructions)
Service · English 0,9 MB -
Hydro MPC, with CU 352
Service · English 4,4 MB -
IRRIGATION PUMP HANDBOOK (System & Concept brochure)
System & Concept brochures · English 22,3 MB -
Wolgan Valley Resort and Spa makes perfect marriage with Grundfos pumps (Case history)
Case histories · English 0,1 MB -
Hydro MPC
Data booklets · English 3,8 MB -
Hydro MPC, APAC range (Data booklet)
Data booklets · English 32,4 MB -
Hydro MPC, ASEAN range (Data Booklet)
Data booklets · English 24,8 MB -
Hydro MPC, Booster systems with 2 to 6 pumps (Data booklet)
Data booklets · English 39,0 MB -
Hydro MPC (Installation and operating instructions)
Installation & operating instructions · English 12,4 MB -
Hydro MPC (Safety instructions)
Installation & operating instructions · English 10,0 MB -
Mounting of sensor for Hydro Booster (Quick Guide)
Quick Guides · English 0,1 MB -
A Wide Range (English) (Product brochure)
Product Brochures · English 46,4 MB -
DIAPHRAGM TANK CALCULATION
Product Brochures · English 0,2 MB -
GRUNDFOS BOOSTER (Hydro MPC) (Product brochure)
Product Brochures · English 0,6 MB -
GRUNDFOS COMMERCIAL BUILDINGS (Product brochure)
Product Brochures · English 3,7 MB -
GRUNDFOS DISTRICT HEATING (Product brochure)
Product Brochures · English 7,5 MB -
GRUNDFOS iSOLUTIONS IN COMMERCIAL BUILDINGS (Product brochure)
Product Brochures · English 9,2 MB -
GRUNDFOS iSOLUTIONS in Commercial Buildings (Product brochures)
Product Brochures · English 9,1 MB -
Grundfos iSOLUTIONS in Commercial Buildings (Product brochures)
Product Brochures · English 6,2 MB -
GRUNDFOS iSOLUTIONS IN COMMERCIAL BUILDINGS, INDIAN VERSION (Product brochure)
Product Brochures · English 9,1 MB -
GRUNDFOS iSOLUTIONS IN COMMERCIAL BUILDINGS, Philippines version (Product brochure)
Product Brochures · English 9,2 MB -
GRUNDFOS iSOLUTIONS IN COMMERCIAL BUILDINGS, Singapore VERSION (Product brochure)
Product Brochures · English 9,2 MB -
GRUNDFOS MPC, intelligent control for water supply applications (Product brochure)
Product Brochures · English 0,7 MB -
GRUNDFOS PUMPS FOR MINING (Product brochure)
Product Brochures · English 1,4 MB -
HYDRO MPC (Product brochure)
Product Brochures · English 0,3 MB -
Intelligent water boosting made smarter (Product brochure)
Product Brochures · English 2,4 MB -
INTELLIGENT WATER BOOSTING MADE SMARTER (Product brochure)
Product Brochures · English 7,0 MB -
Manufacturer declaration (Product brochurer)
Product Brochures · English 0,1 MB -
OPTIMISED WATER SOLUTIONS, India version (Product brochure)
Product Brochures · English 2,5 MB -
PRESSURE BOOSTING IN COMMERCIAL BUILDINGS, Hydro MPC (Product brochure)
Product Brochures · English 1,1 MB -
Reduce pressure and heat loss through intelligent utalisation of pumps (Product brochure)
Product Brochures · English 7,2 MB
Alternative equivalenti
Pompe della stessa classe idraulica di 96941237 (portata e prevalenza equivalenti), disponibili a catalogo.
