Hydro MPC-E 2 CRNE 32-5 Grundfos
Grundfos

Hydro MPC-E 2 CRNE 32-5

Codice: 93630917 EAN: 5715475437194
Tipo Hydro MPC-E (GENIECON UNIT)
Richiesta offerta

Specifiche tecniche

Portata nominale (m³/h)72 m³/h
Fasi3
Tensione nominale400 V
Frequenza (Hz)50 Hz
Grado di protezioneIP54
Temperatura liquido max (°C)60 °C
Temperatura liquido min (°C)5 °C
Temperatura ambiente max (°C)40 °C
Pressione max di esercizio16 bar
Pressione nominale attaccoPN 16
Peso lordo485 kg
Peso netto436 kg
ApprovazioniCE,EAC
Codice EAN5715475437194

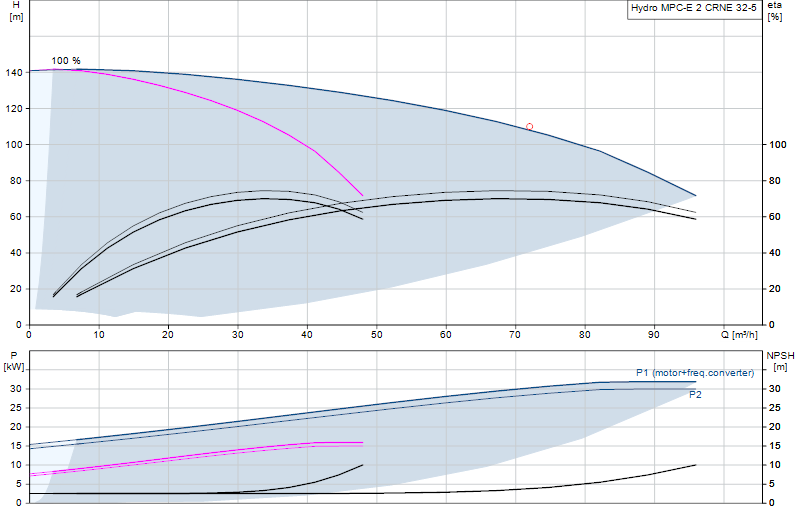

Curva di prestazione

Curva di prestazione Hydro MPC-E 2 CRNE 32-5

Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
