Specifiche tecniche
| Portata nominale (m³/h) | 24.3 m³/h |
| Prevalenza nominale (m) | 104.5 m |
| Fasi | 3 |
| Tensione nominale | 380-415 V |
| Frequenza (Hz) | 50 / 60 Hz |
| Grado di protezione | IP54 |
| Temperatura liquido max (°C) | 60 °C |
| Temperatura liquido min (°C) | 5 °C |
| Temperatura ambiente max (°C) | 40 °C |
| Peso lordo | 263 kg |
| Peso netto | 224 kg |
| Codice EAN | 5712607972073 |

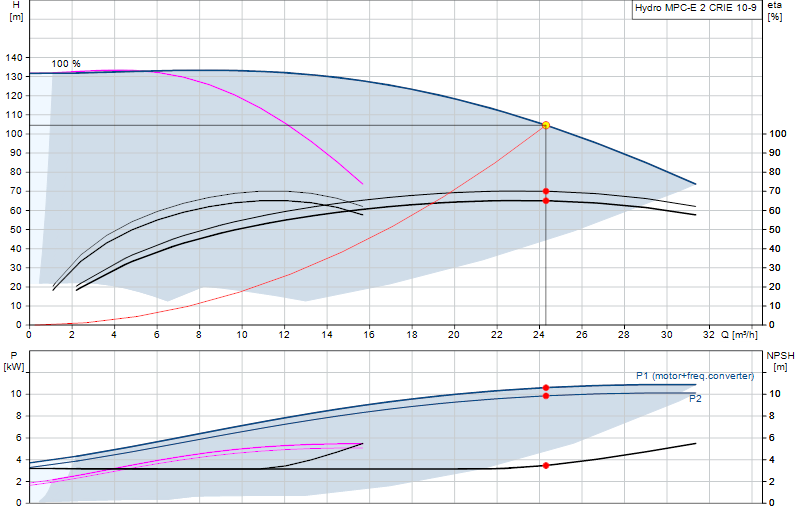

Curva di prestazione
Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
