Hydro MPC-E 2 CRE 45-2-2 Grundfos
Grundfos

Hydro MPC-E 2 CRE 45-2-2

Codice: 93245803 EAN: 5713826089092
Tipo Hydro MPC-E (GENIECON UNIT)
Richiesta offerta

Specifiche tecniche

Portata nominale (m³/h)108 m³/h
Prevalenza nominale (m)46.4 m
Prevalenza max (m)59.8 m
Fasi3
Tensione nominale400 V
Frequenza (Hz)50 Hz
Grado di protezioneIP54
Temperatura liquido max (°C)60 °C
Temperatura liquido min (°C)5 °C
Temperatura ambiente max (°C)40 °C
Pressione max di esercizio16 bar
Pressione nominale attaccoPN 16
Peso lordo465 kg
Peso netto420 kg
ApprovazioniCE,EAC
Codice EAN5713826089092

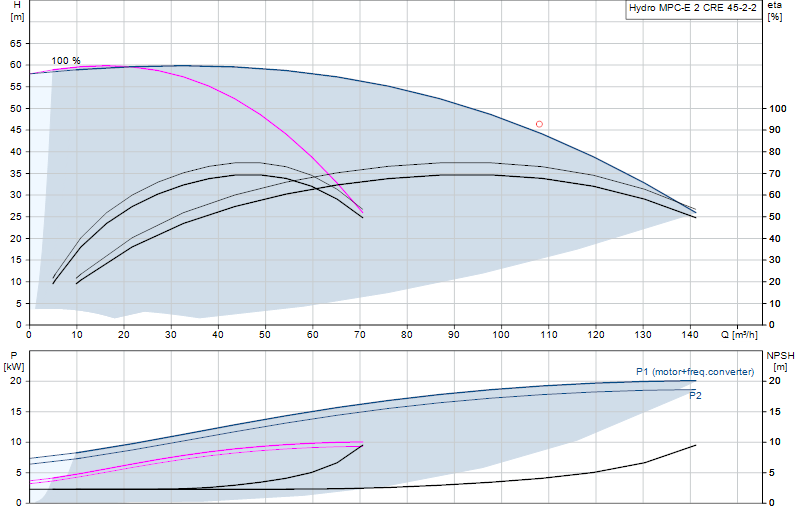

Curva di prestazione

Curva di prestazione Hydro MPC-E 2 CRE 45-2-2

Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.

Documenti e datasheet

Alternative equivalenti

Pompe della stessa classe idraulica di 93245803 (portata e prevalenza equivalenti), disponibili a catalogo.

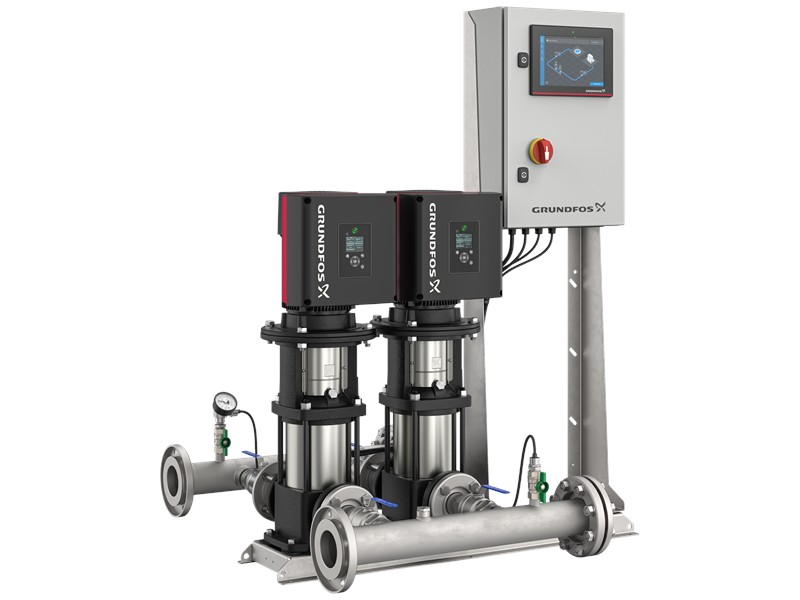

Hydro MPC-E 2 CRNE 45-2-2
Grundfos Hydro MPC-E 2 CRNE 45-2-2 108 m³/h59.8 m
Hydro EN 65-250
Grundfos Hydro EN 65-250 108.2 m³/h60 m30 kW
Equivalenti
Hydro MPC-E 3 CRE 32-2
Grundfos Hydro MPC-E 3 CRE 32-2 108 m³/h57.2 m
Equivalenti

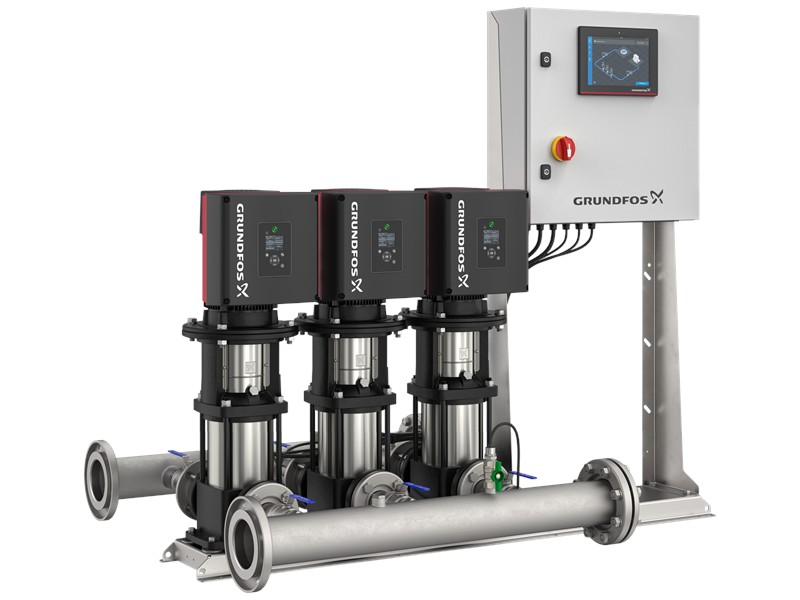

Hydro MPC-E 3 CRNE 32-2
Grundfos Hydro MPC-E 3 CRNE 32-2 108 m³/h57.2 m
Hydro MPC-E 5 CRE 15-3
Grundfos Hydro MPC-E 5 CRE 15-3 105.2 m³/h60.9 m
Hydro MPC-E 5 CRNE 15-3
Grundfos Hydro MPC-E 5 CRNE 15-3 105.2 m³/h60.9 m

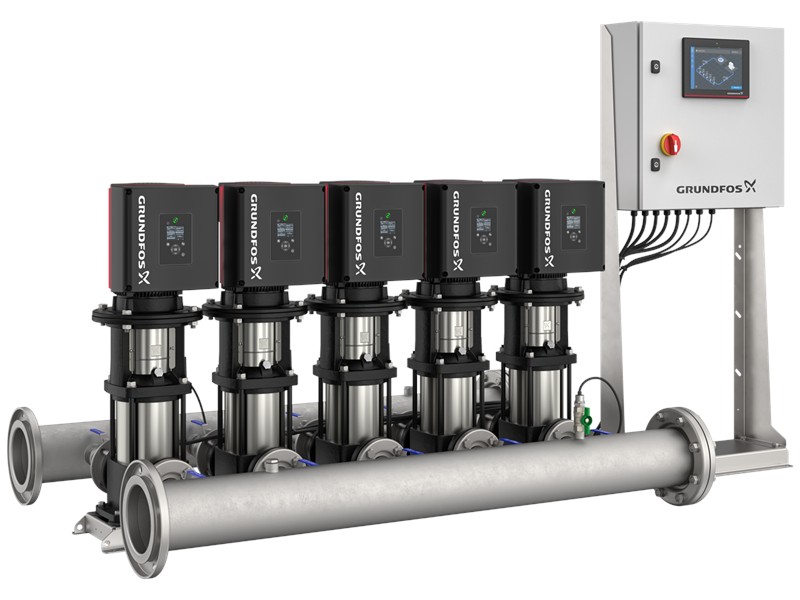

Hydro MPC-E 5 CRIE 15-3
Grundfos Hydro MPC-E 5 CRIE 15-3 105.2 m³/h60.9 m
Equivalenti

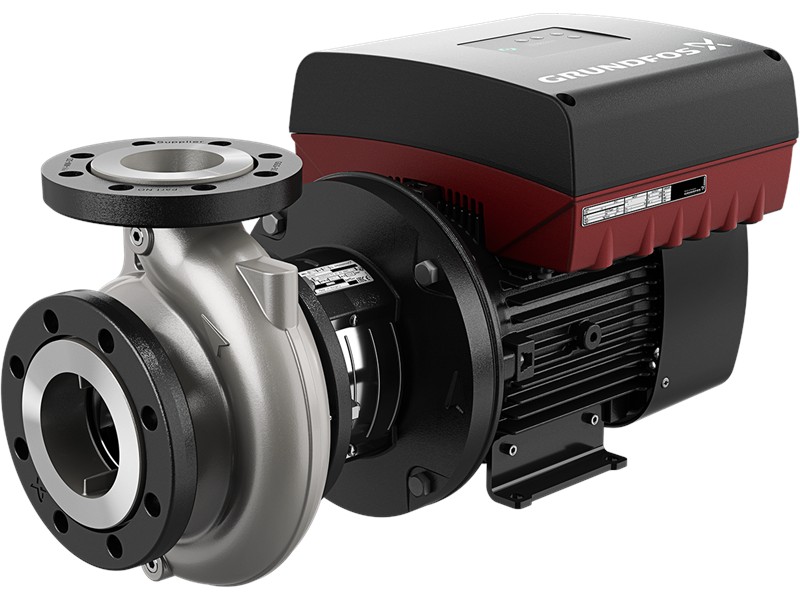

NBGE 80-65-160/177
Grundfos NBGE 80-65-160/177 112.7 m³/h59.9 m22 kW
Equivalenti
