Specifiche tecniche
| Portata nominale (m³/h) | 5.61 l/s |
| Prevalenza nominale (m) | 11.87 m |
| Prevalenza max (m) | 22.5 m |
| Fasi | 3 |
| Tensione nominale | 400-415 V |
| Frequenza (Hz) | 50 Hz |
| Grado di protezione | IP68 |
| Classe di isolamento | F |
| Temperatura liquido max (°C) | 40 °C |
| Temperatura liquido min (°C) | 0 °C |
| Temperatura ambiente max (°C) | 40 °C |
| Pressione max di esercizio | 6 bar |
| Tipo di attacco | Rs2 |
| Dimensione attacco | 2 inch |
| Pressione nominale attacco | PN 10 |
| Materiale corpo pompa | Cast iron |
| Materiale girante | Cast iron |
| Tenuta meccanica | SiC/SiC |
| Peso lordo | 45.8 kg |
| Peso netto | 40.4 kg |
| Approvazioni | EN 12050-2 |
| Codice EAN | 5700396854236 |

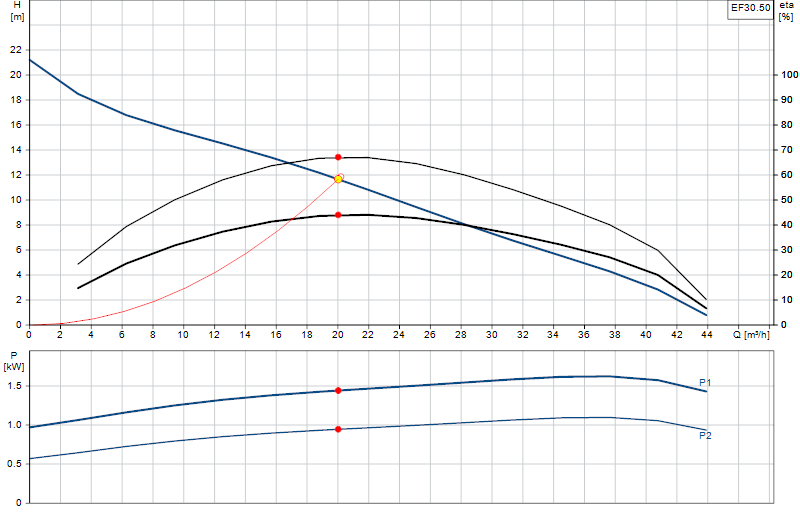

Curva di prestazione
Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
Documenti e datasheet
-
DP, EF, SL1, SLV standard and AUTOADAPT pumps (0.6 to 2.6 kW) (Data booklet)
Data booklets · English 9,9 MB -
Correction sheet - DP/EF, SL1/SLV IO, IOS
Installation & operating instructions · English 0,2 MB -
DP 10, EF 30, SL1.50, SLV.65 (Safety instructions)
Installation & operating instructions · English 5,4 MB -
DP 10, EF 30, SL1.50, SLV.65 (Safety instructions/Correction sheet)
Installation & operating instructions · English 0,3 MB -
DP 10, EF 30, SL1.50, SLV.65 AUTOAdapt (Safety instructions)
Installation & operating instructions · English 5,5 MB -
DP and EF AUTOADAPT (Installation and operating instructions)
Installation & operating instructions · English 7,5 MB -
SEG, DP, EF, SL1/SLV AUTOADAPT fuse box, type ADC
Installation & operating instructions · English 1,5 MB -
SL1.50 and SLV.65, 0.9 - 1.5 kW (Installation and operating instructions)
Installation & operating instructions · English 5,7 MB -
A Wide Range (English) (Product brochure)
Product Brochures · English 46,4 MB -
GRUNDFOS DP and EF ranges, wastewater pumps 0.6 – 2.6 kW (Product brochure)
Product Brochures · English 0,5 MB -
GRUNDFOS WASTEWATER PRODUCTS (Product brochure)
Product Brochures · English 3,6 MB -
GRUNDFOS WASTEWATER, Accessory catalogue (Product brochure)
Product Brochures · English 5,5 MB -
INCREASE OPERATIONAL RELIABILITY IN YOUR NETWORK (Product brochure)
Product Brochures · English 2,9 MB -
Process Driven Engineering (Leaflet)
Product Brochures · English 5,7 MB -
SEG, DP, EF, AND SL (AUTOadapt ranges) (Product brochure)
Product Brochures · English 5,0 MB -
Water Utility range (Product brochure)
Product Brochures · English 3,9 MB -
DP, EF AUTOADAPT (Recommended spare parts) (Service Kit Catalogue)
Service · English 0,1 MB -
DP, EF, SL1, SLV (Service Kit Catalogue)
Service · English 10,9 MB -
DP, EF, SL1, SLV and SEG AUTOADAPT (Electronic unit) (Service kit instruction)
Service · English 4,7 MB -
DP, EF, SL1, SLV and SEG AUTOADAPT, Level sensor (Service kit instruction)
Service · English 3,5 MB -
DP/EF/SL1/SLV and AUTOADAPT (Service instructions)
Service · English 5,5 MB -
Fitting instruction - guide rail bracket (Service kit instruction)
Service · English 0,4 MB
Varianti e codici alternativi
Alternative equivalenti
Pompe della stessa classe idraulica di 96104196 (portata e prevalenza equivalenti), disponibili a catalogo.
Grundfos 96104196
