Specifiche tecniche
| Portata nominale (m³/h) | 11.1 l/s |
| Prevalenza nominale (m) | 14.5 m |
| Prevalenza max (m) | 22.7 m |
| Fasi | 3 |
| Tensione nominale | 380-415 V |
| Frequenza (Hz) | 50 Hz |
| Grado di protezione | IP68 |
| Classe di isolamento | F |
| Temperatura liquido max (°C) | 40 °C |
| Temperatura liquido min (°C) | 0 °C |
| Temperatura ambiente max (°C) | 40 °C |
| Pressione max di esercizio | 5.7 bar |
| Materiale corpo pompa | Cast iron |
| Materiale girante | Ductile cast iron |
| Peso lordo | 60 kg |
| Peso netto | 50.6 kg |
| Codice EAN | 5713829778726 |

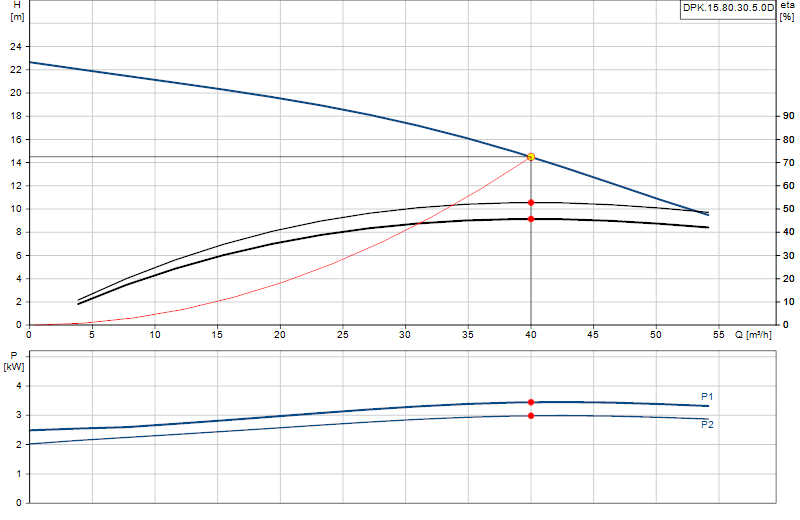

Curva di prestazione
Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
Documenti e datasheet
-
DPK, 0.75 - 22 kW (Service instructions)
Service · English 3,0 MB -
DWK 0.75 - 90 kW, DPK 0.75 - 22 kW (Service instructions)
Service · English 3,2 MB -
DPK pumps, 0.75 - 22 kW (Data booklet)
Data booklets · English 7,0 MB -
Correction to safety instructions for Grundfos DPK and DWK (Correction sheet)
Installation & operating instructions · English 0,1 MB -
Correction to safety instructions for Grundfos DPK and DWK (Correction sheet)
Installation & operating instructions · English 0,1 MB -
DPK, DPK.V (Installation and operating instructions)
Installation & operating instructions · English 2,0 MB -
DWK, DPK (Safety instructions)
Installation & operating instructions · English 1,0 MB -
Monitoring Unit GU02 (Installation and operating instructions)
Installation & operating instructions · English 1,2 MB -
Relay Unit - GU01 (Installation and operating instructions)
Installation & operating instructions · English 0,6 MB -
A Wide Range (English) (Product brochure)
Product Brochures · English 46,4 MB -
DPK.V, Submersible sewage pumps (Product brochure)
Product Brochures · English 10,9 MB -
GRUNDFOS DPK range (Product brochure)
Product Brochures · English 1,3 MB -
OPTIMISED WATER SOLUTIONS, India version (Product brochure)
Product Brochures · English 2,5 MB -
Process Driven Engineering (Leaflet)
Product Brochures · English 5,7 MB -
PROFESSIONAL PUMPS AND SOLUTIONS, India version (Product brochure)
Product Brochures · English 43,0 MB -
Water Utility range (Product brochure)
Product Brochures · English 3,9 MB -
DWK, DPK (Service Kit Catalogue)
Service · English 2,6 MB -
DWK, DPK (Service Kit Catalogue) (Recommended spare parts)
Service · English 0,1 MB
Alternative equivalenti
Pompe della stessa classe idraulica di 99478794 (portata e prevalenza equivalenti), disponibili a catalogo.
