Specifiche tecniche
| Tipo pompa | CRNE |
| Potenza P2 (kW) | 4 kW |
| Fasi | 3 |
| Tensione (V) | 380-500 V |
| Frequenza (Hz) | 50 / 60 Hz |
| Grado di protezione | IP55 |
| Convertitore di frequenza | Built-in |
| Temperatura liquido max (°C) | 120 °C |
| Temperatura liquido min (°C) | -20 °C |
| Temperatura ambiente max (°C) | 50 °C |
| Tipo di attacco | DIN / ANSI / JIS |
| Tenuta meccanica | HQQE |
| Lunghezza (mm) | 280 mm |
| Peso lordo | 58 kg |
| Peso netto | 54 kg |
| Approvazioni | CE,UKCA,SEPRO,RCM, |
| Codice motore | 93094755 |
| Codice EAN | 5712605827276 |

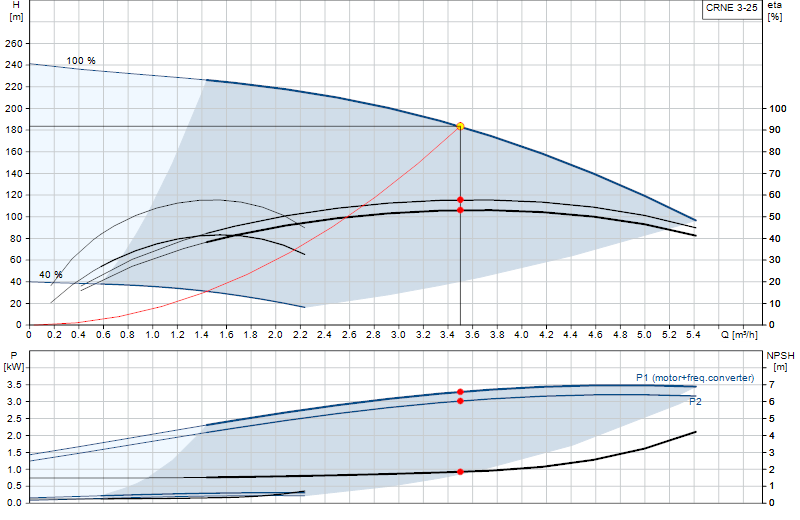

Curva di prestazione
Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
Documenti e datasheet
-
CR(N) SF 32, 45, 64 and 90 (Model A) (Service Instructions)
Service · English 2,9 MB -
CRN SF 32, 45, 64, 90, Model B (Service instruction)
Service · English 1,2 MB -
CR, CRI, CRN, CRE, CRIE, CRNE, Custom-built pumps (Data booklet)
Data booklets · English 15,2 MB -
CR, CRN, CRNE high pressure (Data booklet)
Data booklets · English 14,9 MB -
CRN 1S/1/3/5 SF (Service kit instructions)
Installation & operating instructions · English 1,0 MB -
CRN-SF (I & O instructions)
Installation & operating instructions · English 1,4 MB -
CRNE-HS (I & O instructions)
Installation & operating instructions · English 1,2 MB -
CR, CRN 95-255 (Quick Guide)
Quick Guides · English 2,0 MB -
CR, CRN, CRI, CRT, Removal of TRANSPORT BRACKET (Quick Guide)
Quick Guides · English 5,2 MB -
CRN high pressure programme (Product brochure)
Product Brochures · English 0,4 MB -
CR HS (Service Kit Catalogue)
Service · English 0,3 MB -
CR SF (Service Kit Catalogue)
Service · English 1,6 MB -
CR, CRN SF 32, 45, 64, 90 (Chamber stack) (Service kit instruction)
Service · English 2,5 MB -
CRN 10-, 15- and 20-SF (Service Instructions)
Service · English 0,5 MB -
CRN 5 SF (Service Instructions)
Service · English 0,6 MB
