Specifiche tecniche
| Tipo pompa | CRNE |
| Portata nominale (m³/h) | 28.47 m³/h |
| Prevalenza nominale (m) | 174.6 m |
| Prevalenza max (m) | 214.2 m |
| Numero di stadi | 8 |
| Indice di efficienza minima (MEI) | 0.70 |
| Potenza P2 (kW) | 18.5 kW |
| Fasi | 3 |
| Tensione (V) | 380-480 V |
| Frequenza (Hz) | 50 / 60 Hz |
| Grado di protezione | IP55 |
| Convertitore di frequenza | Built-in |
| Temperatura liquido max (°C) | 90 °C |
| Temperatura liquido min (°C) | -20 °C |
| Temperatura ambiente max (°C) | 50 °C |
| Pressione max di esercizio | 25 bar |
| Tipo di attacco | DIN / ANSI / JIS |
| Pressione nominale attacco | PN 25 |
| Materiale girante | Stainless steel |
| Tenuta meccanica | HQQV |
| Lunghezza (mm) | 300 mm |
| Altezza (mm) | 90 mm |
| Larghezza (mm) | 248 mm |
| Peso lordo | 209 kg |
| Peso netto | 157 kg |
| Approvazioni | CE,UKCA,SEPRO,RCM, |
| Codice motore | 92875516 |
| Codice EAN | 5715468510637 |

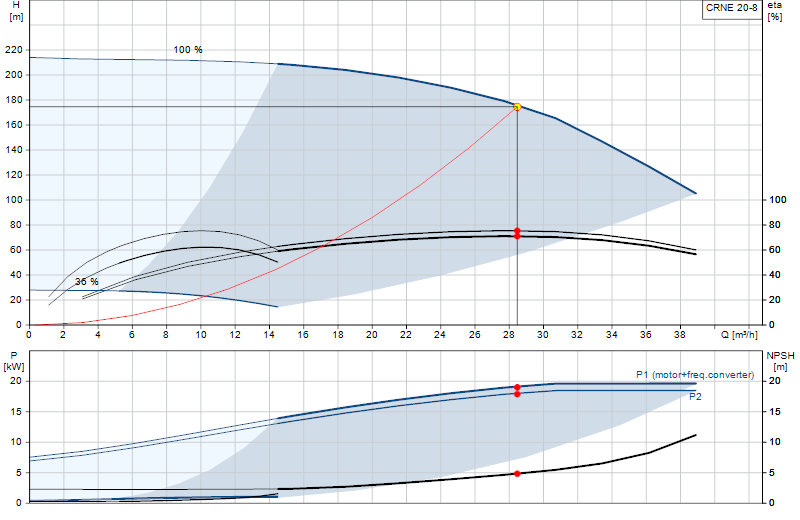

Curva di prestazione
Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
