Specifiche tecniche
| Tipo pompa | CRN |
| Potenza P2 (kW) | 3 kW |
| Fasi | 3 |
| Tensione (V) | 380-415D V |
| Frequenza (Hz) | 50 Hz |
| Grado di protezione | IP55 Dust/Jetting |
| Convertitore di frequenza | None |
| Temperatura liquido max (°C) | 120 °C |
| Temperatura liquido min (°C) | -20 °C |
| Temperatura ambiente max (°C) | 60 °C |
| Tipo di attacco | DIN / ANSI / JIS |
| Tenuta meccanica | HQQE |
| Lunghezza (mm) | 280 mm |
| Peso lordo | 55 kg |
| Peso netto | 50 kg |
| Approvazioni | CE,EAC,UKCA,SEPRO,RCM, |
| Codice motore | 85905157 |
| Codice EAN | 5711492232606 |

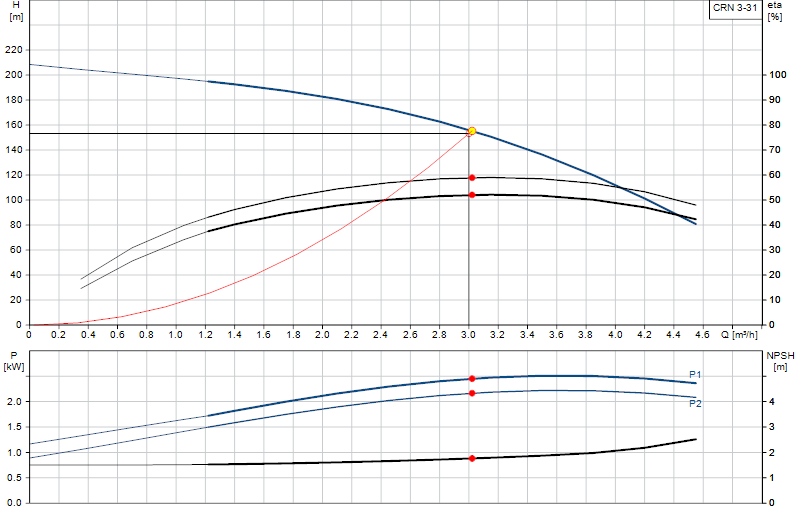

Curva di prestazione
Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
