Specifiche tecniche
| Tipo pompa | CRN |
| Portata nominale (m³/h) | 10 m³/h |
| Prevalenza nominale (m) | 173 m |
| Prevalenza max (m) | 215 m |
| Numero di stadi | 21 |
| Indice di efficienza minima (MEI) | 0.70 |
| Potenza P2 (kW) | 7.5 kW |
| Fasi | 3 |
| Tensione (V) | 380-400D/660-690Y V |
| Frequenza (Hz) | 50 Hz |
| Grado di protezione | IP55 Dust/Jetting |
| Convertitore di frequenza | None |
| Temperatura liquido max (°C) | 120 °C |
| Temperatura liquido min (°C) | -20 °C |
| Temperatura ambiente max (°C) | 60 °C |
| Pressione max di esercizio | 50 bar |
| Tipo di attacco | PJE |
| Pressione nominale attacco | PN 50 |
| Materiale girante | Stainless steel |
| Tenuta meccanica | HQQE |
| Lunghezza (mm) | 261 mm |
| Altezza (mm) | 80 mm |
| Larghezza (mm) | 248 mm |
| Peso lordo | 136 kg |
| Peso netto | 116 kg |
| Approvazioni | CE,EAC,UKCA,SEPRO, |
| Codice motore | 93432530 |
| Codice EAN | 5715475226699 |

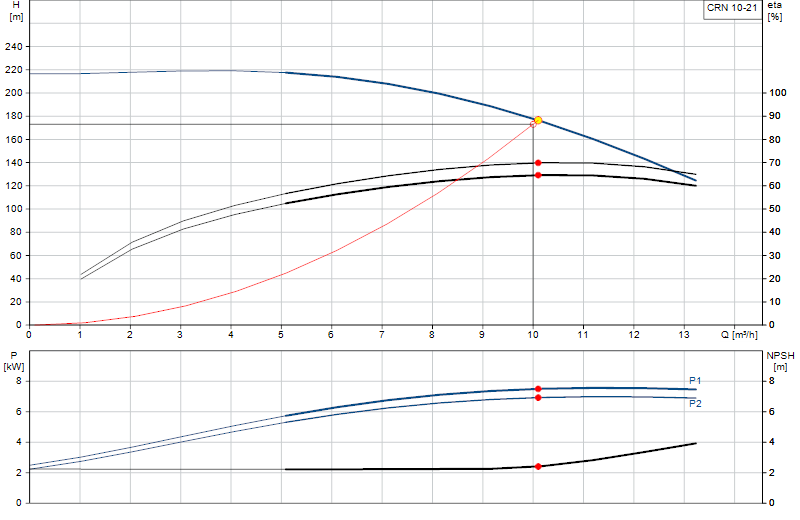

Curva di prestazione
Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
