Specifiche tecniche
| Tipo pompa | CRIE |
| Portata nominale (m³/h) | 11.71 m³/h |
| Prevalenza nominale (m) | 14.54 m |
| Prevalenza max (m) | 18.1 m |
| Numero di stadi | 2 |
| Indice di efficienza minima (MEI) | 0.70 |
| Potenza P2 (kW) | 0.75 kW |
| Fasi | 1 |
| Tensione (V) | 200-240 V |
| Frequenza (Hz) | 50 / 60 Hz |
| Grado di protezione | IP55 |
| Convertitore di frequenza | Built-in |
| Temperatura liquido max (°C) | 120 °C |
| Temperatura liquido min (°C) | -20 °C |
| Temperatura ambiente max (°C) | 50 °C |
| Pressione max di esercizio | 16 bar |
| Tipo di attacco | FlexiClamp |
| Pressione nominale attacco | PN 25 |
| Materiale girante | Stainless steel |
| Tenuta meccanica | HQQE |
| Lunghezza (mm) | 202 mm |
| Altezza (mm) | 80 mm |
| Larghezza (mm) | 248 mm |
| Peso lordo | 37 kg |
| Peso netto | 33 kg |
| Approvazioni | CE,UKCA,SEPRO,RCM, |
| Codice motore | 98248266 |
| Codice EAN | 5715468488196 |

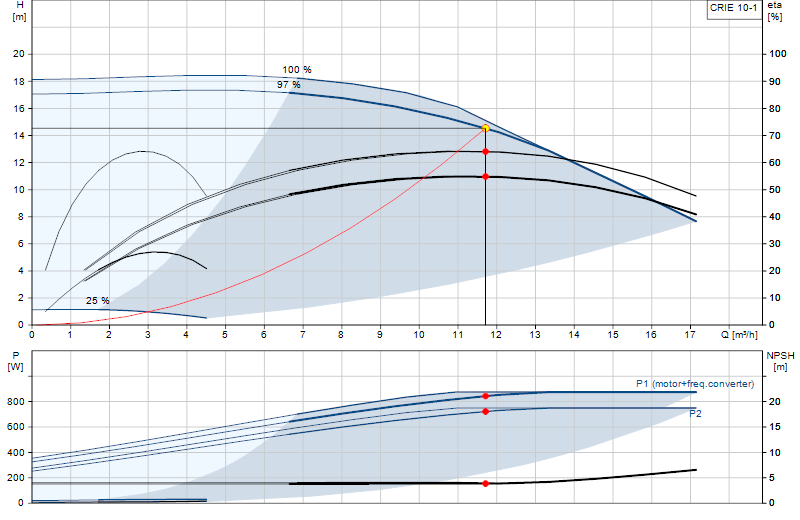

Curva di prestazione
Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
Documenti e datasheet
-
CR Innovation Inside (System & Concept brochure)
System & Concept brochures · English 2,2 MB -
CRIE, CRNE 1, 3 and 5, Model A (Service Instruction)
Service · English 0,6 MB -
CR, CRI, CRN, CRE, CRIE, CRNE, Custom-built pumps (Data booklet)
Data booklets · English 15,2 MB -
CRE, CRIE, CRNE (Data booklet)
Data booklets · English 20,0 MB -
CRE, CRIE, CRNE (MGE motor update) (Data Sheet)
Data sheets · English 0,4 MB -
CRE, CRIE, CRNE, MGE/MLE motor update (Data sheet)
Data sheets · English 0,3 MB -
MGE (Data sheet)
Data sheets · English 0,5 MB -
CRE, CRIE, CRNE, CRTE, SPKE, MTRE, CME, BMS hp, MGE 15-22 kW (I & O instructions)
Installation & operating instructions · English 4,8 MB -
CRE, CRIE, CRNE, SPKE, MTRE, CME, BMS - E-pumps with MGE Model J, K motor (Installation and operating instructions)
Installation & operating instructions · English 5,9 MB -
CRE, CRIE, CRNE, SPKE, MTRE, CME, BMS - E-pumps with MGE Model K motor (Safety instructions)
Installation & operating instructions · English 8,3 MB -
CRE, CRIE, CRNE, SPKE, MTRE, MTHE, CME 0.37-11 kW (I & O instructions)
Installation & operating instructions · English 2,3 MB -
CRE, CRIE, CRNE, SPKE, MTRE, MTHE, CME, MGE 71-160 (Safety instructions)
Installation & operating instructions · English 7,2 MB -
CREC, CRIEC, CRNEC, MTREC, CMEC - Supplement to Installation and Operating Instructions
Installation & operating instructions · English 2,1 MB -
CREC, CRIEC, CRNEC, MTREC, CMEC (I & O instructions)
Installation & operating instructions · English 7,4 MB -
CR, CRN 95-255 (Quick Guide)
Quick Guides · English 2,0 MB -
HYDRO MULTI-E (>3.0 kW) (QUICK GUIDE)
Quick Guides · English 4,8 MB -
Hydro Multi-E, CR(I)E (<2.2 kW) (Quick Guide)
Quick Guides · English 3,4 MB -
A Wide Range (English) (Product brochure)
Product Brochures · English 46,4 MB -
CR pulley head (Product brochure)
Product Brochures · English 0,1 MB -
CRN MAGdrive (Product brochure)
Product Brochures · English 1,0 MB -
Grundfos Industrial Solutions - Marine pumps (Product brochure)
Product Brochures · English 1,4 MB -
GRUNDFOS PUMPS FOR MINING (Product brochure)
Product Brochures · English 1,4 MB -
Mechanical shaft seals for pumps (Handbook)
Product Brochures · English 6,9 MB -
Reduce your system complexity with Grundfos iSOLUTIONS, India version (Product brochure)
Product Brochures · English 1,2 MB -
TEMPERATURE CONTROL, CHILLER UNITS. (Product brochure)
Product Brochures · English 2,1 MB
Varianti e codici alternativi
Alternative equivalenti
Pompe della stessa classe idraulica di 93149306 (portata e prevalenza equivalenti), disponibili a catalogo.
