Specifiche tecniche
| Tipo pompa | CRE |
| Portata nominale (m³/h) | 12.65 m³/h |
| Prevalenza nominale (m) | 91.12 m |
| Prevalenza max (m) | 108.9 m |
| Numero di stadi | 8 |
| Indice di efficienza minima (MEI) | 0.70 |
| Potenza P2 (kW) | 5.5 kW |
| Fasi | 3 |
| Tensione (V) | 380-500 V |
| Frequenza (Hz) | 50 / 60 Hz |
| Grado di protezione | IP55 |
| Convertitore di frequenza | Built-in |
| Temperatura liquido max (°C) | 120 °C |
| Temperatura liquido min (°C) | -20 °C |
| Temperatura ambiente max (°C) | 50 °C |
| Pressione max di esercizio | 16 bar |
| Tipo di attacco | DIN / JIS |
| Pressione nominale attacco | PN 25 |
| Materiale girante | Stainless steel |
| Tenuta meccanica | HQQE |
| Lunghezza (mm) | 280 mm |
| Altezza (mm) | 80 mm |
| Larghezza (mm) | 256 mm |
| Peso lordo | 109 kg |
| Peso netto | 81 kg |
| Approvazioni | CE,UKCA,SEPRO,RCM, |
| Codice motore | 92984047 |
| Codice EAN | 5712609345196 |

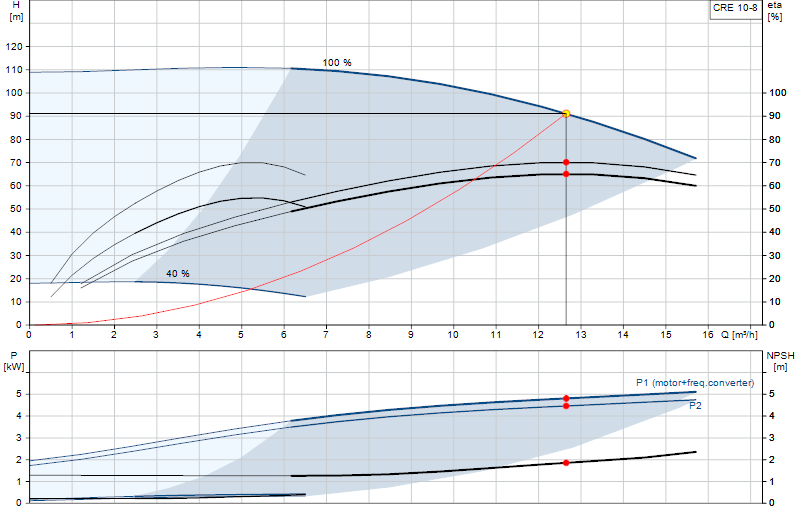

Curva di prestazione
Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
Documenti e datasheet
-
CR Innovation Inside (System & Concept brochure)
System & Concept brochures · English 2,2 MB -
CRE 1, CRE 3 and CRE 5, Model A (Service Instruction)
Service · English 0,6 MB -
IRRIGATION PUMP HANDBOOK (System & Concept brochure)
System & Concept brochures · English 22,3 MB -
Wolgan Valley Resort and Spa makes perfect marriage with Grundfos pumps (Case history)
Case histories · English 0,1 MB -
CR, CRI, CRN, CRE, CRIE, CRNE, Custom-built pumps (Data booklet)
Data booklets · English 15,2 MB -
CRE, CRIE, CRNE (Data booklet)
Data booklets · English 20,0 MB -
CRE, CRIE, CRNE (MGE motor update) (Data Sheet)
Data sheets · English 0,4 MB -
CRE, CRIE, CRNE, MGE/MLE motor update (Data sheet)
Data sheets · English 0,3 MB -
MGE (Data sheet)
Data sheets · English 0,5 MB -
CRE, CRIE, CRNE, CRTE, SPKE, MTRE, CME, BMS hp, MGE 15-22 kW (I & O instructions)
Installation & operating instructions · English 4,8 MB -
CRE, CRIE, CRNE, SPKE, MTRE, CME, BMS - E-pumps with MGE Model J, K motor (Installation and operating instructions)
Installation & operating instructions · English 5,9 MB -
CRE, CRIE, CRNE, SPKE, MTRE, CME, BMS - E-pumps with MGE Model K motor (Safety instructions)
Installation & operating instructions · English 8,3 MB -
CRE, CRIE, CRNE, SPKE, MTRE, MTHE, CME 0.37-11 kW (I & O instructions)
Installation & operating instructions · English 2,3 MB -
CRE, CRIE, CRNE, SPKE, MTRE, MTHE, CME, MGE 71-160 (Safety instructions)
Installation & operating instructions · English 7,2 MB -
CREC, CRIEC, CRNEC, MTREC, CMEC - Supplement to Installation and Operating Instructions
Installation & operating instructions · English 2,1 MB -
CREC, CRIEC, CRNEC, MTREC, CMEC (I & O instructions)
Installation & operating instructions · English 7,4 MB -
InFlow, CR pumps (I & O instructions)
Installation & operating instructions · English 5,8 MB -
CR, CRN 95-255 (Quick Guide)
Quick Guides · English 2,0 MB -
REMOVAL OF TRANSPORT BRACKET and mounting of MOTOR (Quick Guide)
Quick Guides · English 5,0 MB -
A Wide Range (English) (Product brochure)
Product Brochures · English 46,4 MB -
AIRCONDITIONING:INDIA’S GREENESTBUILDING REDUCESENERGY BY 50%, India version (Product brochure)
Product Brochures · English 1,3 MB -
Beverage application pumps - Refresh your business with Grundfos (Product brochure)
Product Brochures · English 5,8 MB -
Case Story- Process_Industrial cooling tower, India version (Product brochure)
Product Brochures · English 2,4 MB -
CR pulley head (Product brochure)
Product Brochures · English 0,1 MB -
CRN MAGdrive (Product brochure)
Product Brochures · English 1,0 MB -
Digitalization (Product brochure)
Product Brochures · English 1,2 MB -
Food application pumps - Nourish your business with Grundfos (Product brochure)
Product Brochures · English 3,4 MB -
GRUNDFOS DISTRICT HEATING (Product brochure)
Product Brochures · English 7,5 MB -
Grundfos Industrial Solutions - Marine pumps (Product brochure)
Product Brochures · English 1,4 MB -
GRUNDFOS OFFERINGS FOR INDUSTRIAL WATER REUSE (PRODUCT BROCHURE)
Product Brochures · English 1,0 MB -
GRUNDFOS OFFERINGS FOR INDUSTRIAL WATER REUSE, India version (Product brochure)
Product Brochures · English 1,2 MB -
GRUNDFOS PUMPS FOR MINING (Product brochure)
Product Brochures · English 1,4 MB -
iGRID BYPASSES
Product Brochures · English 1,1 MB -
iGRID PRESSURE ZONE
Product Brochures · English 0,9 MB -
iGRID PRESSURE ZONE, Design and Configuration Guide
Product Brochures · English 3,5 MB -
iGRID SERVICES
Product Brochures · English 1,1 MB -
iGRID TEMPERATURE ZONE
Product Brochures · English 1,5 MB -
iGRID TEMPERATURE ZONE, Design and Configuration Guide
Product Brochures · English 3,5 MB -
iGRID, District heating
Product Brochures · English 2,1 MB -
Industrial Cooling White paper (Product brochure)
Product Brochures · English 0,5 MB -
Industrial Cooling: Smart Savings with Intelligent Pumps, India version (Product brochure)
Product Brochures · English 2,4 MB -
Industrial Pump Handbook (Handbook)
Product Brochures · English 22,6 MB -
Industrial Water Supply (Product brochure)
Product Brochures · English 1,6 MB -
Mechanical shaft seals for pumps (Handbook)
Product Brochures · English 6,9 MB -
Reduce your system complexity with Grundfos iSOLUTIONS, India version (Product brochure)
Product Brochures · English 1,2 MB -
TEMPERATURE CONTROL, CHILLER UNITS. (Product brochure)
Product Brochures · English 2,1 MB -
Wash and Clean (Product brochure)
Product Brochures · English 1,0 MB
Varianti e codici alternativi
Alternative equivalenti
Pompe della stessa classe idraulica di 99241457 (portata e prevalenza equivalenti), disponibili a catalogo.
