Specifiche tecniche
| Tipo pompa | CRE |
| Portata nominale (m³/h) | 14.26 m³/h |
| Prevalenza nominale (m) | 28.37 m |
| Prevalenza max (m) | 34.8 m |
| Numero di stadi | 3 |
| Indice di efficienza minima (MEI) | 0.70 |
| Potenza P2 (kW) | 2.2 kW |
| Fasi | 3 |
| Tensione (V) | 380-500 V |
| Frequenza (Hz) | 50 / 60 Hz |
| Grado di protezione | IP55 |
| Convertitore di frequenza | Built-in |
| Temperatura liquido max (°C) | 120 °C |
| Temperatura liquido min (°C) | -20 °C |
| Temperatura ambiente max (°C) | 50 °C |
| Pressione max di esercizio | 16 bar |
| Tipo di attacco | DIN / JIS |
| Pressione nominale attacco | PN 25 |
| Materiale girante | Stainless steel |
| Tenuta meccanica | HQQE |
| Lunghezza (mm) | 280 mm |
| Altezza (mm) | 80 mm |
| Larghezza (mm) | 256 mm |
| Peso lordo | 50 kg |
| Peso netto | 46 kg |
| Approvazioni | CE,UKCA,SEPRO,RCM, |
| Codice motore | 98190193 |
| Codice EAN | 5711496435805 |

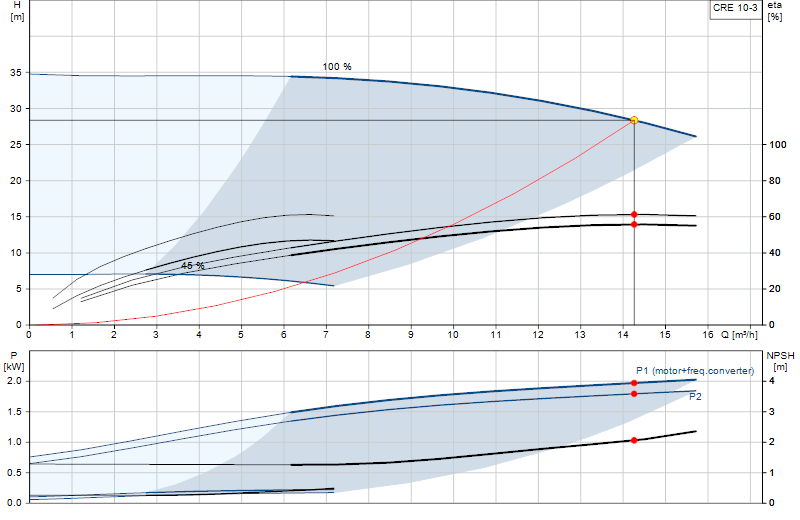

Curva di prestazione
Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
