Specifiche tecniche
| Tipo pompa | CR |
| Portata nominale (m³/h) | 0.9 m³/h |
| Prevalenza nominale (m) | 32.5 m |
| Prevalenza max (m) | 47.5 m |
| Numero di stadi | 8 |
| Indice di efficienza minima (MEI) | 0.54 |
| Potenza P2 (kW) | 0.37 kW |
| Fasi | 3 |
| Tensione (V) | 220-230D/380-400Y V |
| Frequenza (Hz) | 50 Hz |
| Grado di protezione | IP55 Dust/Jetting |
| Convertitore di frequenza | None |
| Temperatura liquido max (°C) | 120 °C |
| Temperatura liquido min (°C) | -20 °C |
| Temperatura ambiente max (°C) | 60 °C |
| Pressione max di esercizio | 25 bar |
| Tipo di attacco | DIN / ANSI / JIS |
| Pressione nominale attacco | PN 25 |
| Materiale girante | Stainless steel |
| Tenuta meccanica | HQQE |
| Lunghezza (mm) | 250 mm |
| Altezza (mm) | 75 mm |
| Larghezza (mm) | 220 mm |
| Peso lordo | 27.9 kg |
| Peso netto | 25.2 kg |
| Approvazioni | CE,EAC,UKCA,SEPRO,RCM, |
| Codice motore | 93296451 |
| Codice EAN | 5715471914675 |

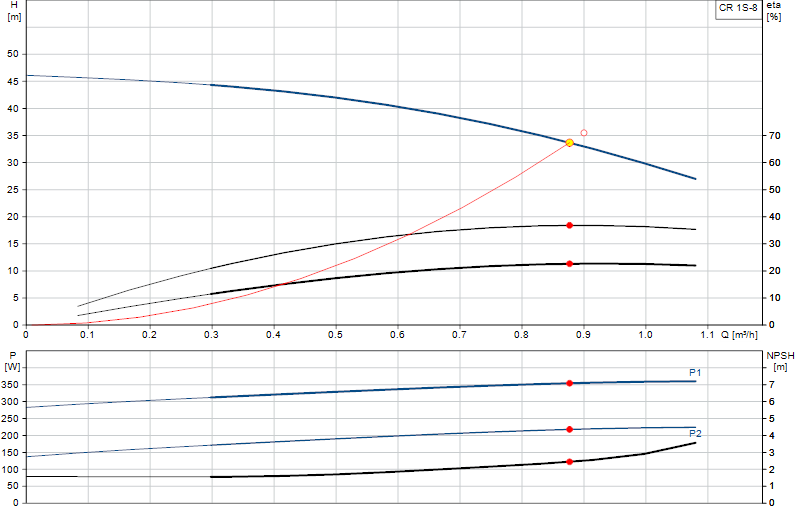

Curva di prestazione
Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
