Specifiche tecniche
| Tipo pompa | CR |
| Portata nominale (m³/h) | 0.9 m³/h |
| Prevalenza nominale (m) | 83.3 m |
| Prevalenza max (m) | 123.2 m |
| Numero di stadi | 21 |
| Indice di efficienza minima (MEI) | 0.54 |
| Potenza P2 (kW) | 0.75 kW |
| Fasi | 3 |
| Tensione (V) | 220-230D/380-400Y V |
| Frequenza (Hz) | 50 Hz |
| Grado di protezione | IP55 Dust/Jetting |
| Convertitore di frequenza | None |
| Temperatura liquido max (°C) | 120 °C |
| Temperatura liquido min (°C) | -20 °C |
| Temperatura ambiente max (°C) | 60 °C |
| Pressione max di esercizio | 16 bar |
| Tipo di attacco | Oval / Rp |
| Pressione nominale attacco | PN 16 |
| Materiale girante | Stainless steel |
| Tenuta meccanica | HQQE |
| Lunghezza (mm) | 160 mm |
| Peso lordo | 34.1 kg |
| Peso netto | 30 kg |
| Approvazioni | CE,EAC,UKCA,SEPRO,RCM, |
| Codice motore | 93031603 |
| Codice EAN | 5715472991125 |

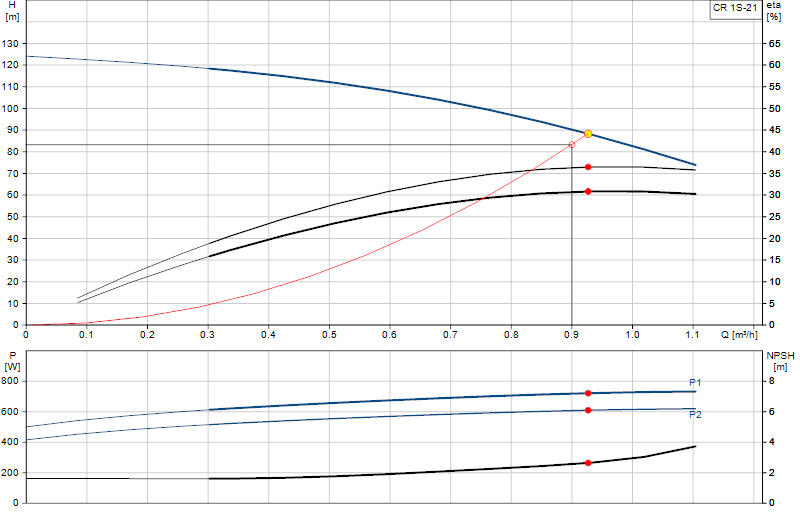

Curva di prestazione
Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
Documenti e datasheet
-
CR 1, CR 3 and CR 5, Model A (Service instruction)
Service · English 1,8 MB -
CR Innovation Inside (System & Concept brochure)
System & Concept brochures · English 2,2 MB -
CR, CRI, CRN 10, 15 and 20 (Service Instructions)
Service · English 0,8 MB -
CR, CRI, CRN 32-90, Air-cooled top, model B (Service instructions)
Service · English 0,9 MB -
CR, CRI, CRN 32-90, Double shaft seal/back-to-back, model B (Service instructions)
Service · English 0,9 MB -
CR, CRI, CRN 32-90, Standard, Model B (Service instruction)
Service · English 1,8 MB -
CR, CRI, CRN Double shaft seal (Back to back)
Service · English 1,7 MB -
CR, CRI, CRN Double shaft seal (Tandem)
Service · English 1,4 MB -
CR, CRI, CRN, High temperature (air-cooled top) (Service instructions)
Service · English 1,4 MB -
CR, CRN 32-90, Double shaft seal/tandem, Model B (Service instructions)
Service · English 0,9 MB -
CR, CRN 95 - 155, Double shaft seal (Back to back) (Service instructions)
Service · English 4,1 MB -
CR, CRN 95 - 155, High temperature, Air-cooled top (Service instructions)
Service · English 3,2 MB -
CR, CRN 95 - 255, Bearing flange (Service instructions)
Service · English 13,7 MB -
CR, CRN 95 to 255 (Service instructions)
Service · English 19,4 MB -
CR, CRN 95 to 255, Horizontally mounted pump (Service instruction)
Service · English 5,2 MB -
CR, CRN 95-155, Double shaft seal (Tandem) (Service instruction)
Service · English 3,5 MB -
CR(N) 32, 45, 64 and 90 (Service Instruction)
Service · English 0,6 MB -
IRRIGATION PUMP HANDBOOK (System & Concept brochure)
System & Concept brochures · English 22,3 MB -
CR, CRI, CRN 1 - 255, 50 Hz (Data booklet)
Data booklets · English 7,9 MB -
CR, CRI, CRN, CRE, CRIE, CRNE, Custom-built pumps (Data booklet)
Data booklets · English 15,2 MB -
CR LiqTec (Data Sheet)
Data sheets · English 0,2 MB -
CR motor protection 204 (Data Sheet)
Data sheets · English 0,1 MB -
CR(I) deep-well pumps (Data Sheet)
Data sheets · English 0,1 MB -
GRUNDFOS INDUSTRY CR 95, CR 125, CR 155 (Data sheet)
Data sheets · English 0,3 MB -
CR deep-well (Installation and operating instructions)
Installation & operating instructions · English 0,1 MB -
CR, CRI, CRN (Safety instructions)
Installation & operating instructions · English 5,3 MB -
CR, CRI, CRN 140°C, supplement (Installation and operating instructions)
Installation & operating instructions · English 1,6 MB -
CR, CRI, CRN 1s-255 (Installation and operating instructions)
Installation & operating instructions · English 4,5 MB -
CR, CRI, CRN 1s, 1, 3, 5, 10, 15, 20, CR, CRN 32, 45, 64, 90, 120, 150 (air-cooled top) (Multi language)
Installation & operating instructions · English 1,2 MB -
CR, CRI, CRN 1s, 1, 3, 5, 10, 15, 20/CR, CRN 32, 45, 64, 90, 120, 150 Double seal (tandem)
Installation & operating instructions · English 0,9 MB -
CR, CRI, CRN, 0.37 - 75 kW (I & O instructions)
Installation & operating instructions · English 9,4 MB -
CR, CRI, CRN, CRT, ATEX-approved pumps (I & O instructions)
Installation & operating instructions · English 2,3 MB -
CR, CRN 95-155, air-cooled top (Installation and operating instructions)
Installation & operating instructions · English 0,8 MB -
CR, CRN 95-155, Double shaft seal (back-to-back) (Installation and operating instructions)
Installation & operating instructions · English 0,7 MB -
CR, CRN 95-155, Double shaft seal (tandem) (Installation and operating instructions)
Installation & operating instructions · English 0,7 MB -
CR, CRN 95-255 (I & O instructions)
Installation & operating instructions · English 4,7 MB -
CR, CRN 95-255 (Safety instructions)
Installation & operating instructions · English 4,5 MB -
CR, CRN pumps with CUE frequency converter
Installation & operating instructions · English 2,4 MB -
InFlow, CR pumps (I & O instructions)
Installation & operating instructions · English 5,8 MB -
Moroccan declaration of conformity, CR, CRI, CRN, CRT (Instruction)
Installation & operating instructions · English 0,2 MB -
Supplement to CR, CRN 95-255 (Installation and operating instructions)
Installation & operating instructions · English 1,1 MB -
Warning quick guide CR without baseplate
Installation & operating instructions · English 0,4 MB -
CR, CRN 95-255 (Quick Guide)
Quick Guides · English 2,0 MB -
CR, CRN, CRI, CRT, Removal of TRANSPORT BRACKET (Quick Guide)
Quick Guides · English 5,2 MB -
GRUNDFOS iSOLUTIONS MONITOR (Quick Guide)
Quick Guides · English 3,0 MB -
REMOVAL OF TRANSPORT BRACKET and mounting of MOTOR (Quick Guide)
Quick Guides · English 5,0 MB -
A Wide Range (English) (Product brochure)
Product Brochures · English 46,4 MB -
Boilers and systems, Direct Level Control (Product brochure)
Product Brochures · English 1,1 MB -
CR 95, CR 125, CR 155 (Product brochure)
Product Brochures · English 0,3 MB -
CR pulley head (Product brochure)
Product Brochures · English 0,1 MB -
CRN MAGdrive (Product brochure)
Product Brochures · English 1,0 MB -
Digitalization (Product brochure)
Product Brochures · English 1,2 MB -
Food application pumps - Nourish your business with Grundfos (Product brochure)
Product Brochures · English 3,4 MB -
Grundfos Industrial Solutions - Marine pumps (Product brochure)
Product Brochures · English 1,4 MB -
GRUNDFOS MPC, Taking your pump system efficiency to new heights (Product brochure)
Product Brochures · English 1,0 MB -
GRUNDFOS OFFERINGS FOR INDUSTRIAL WATER REUSE (PRODUCT BROCHURE)
Product Brochures · English 1,0 MB -
GRUNDFOS OFFERINGS FOR INDUSTRIAL WATER REUSE, India version (Product brochure)
Product Brochures · English 1,2 MB -
GRUNDFOS PROJECT AND SERVICE CAPABILITIES (Product brochure)
Product Brochures · English 24,0 MB -
GRUNDFOS PUMPS FOR MINING (Product brochure)
Product Brochures · English 1,4 MB -
Industrial Cooling White paper (Product brochure)
Product Brochures · English 0,5 MB
Varianti e codici alternativi
Alternative equivalenti
Pompe della stessa classe idraulica di 93457092 (portata e prevalenza equivalenti), disponibili a catalogo.
Prodotti correlati

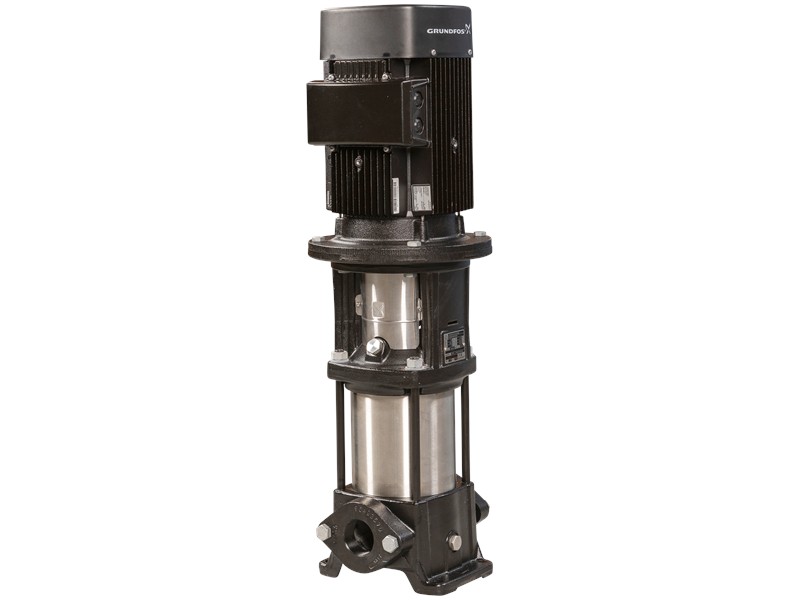

Grundfos 93457092
