Specifiche tecniche
| Tipo pompa | CR |
| Portata nominale (m³/h) | 185 m³/h |
| Prevalenza nominale (m) | 190.4 m |
| Prevalenza max (m) | 253.6 m |
| Numero di stadi | 6 |
| Indice di efficienza minima (MEI) | 0.70 |
| Potenza P2 (kW) | 132 kW |
| Fasi | 3 |
| Tensione (V) | 380-420D/660-725Y V |
| Frequenza (Hz) | 50 Hz |
| Grado di protezione | IP55 |
| Convertitore di frequenza | None |
| Temperatura liquido max (°C) | 120 °C |
| Temperatura liquido min (°C) | -20 °C |
| Temperatura ambiente max (°C) | 55 °C |
| Pressione max di esercizio | 40 bar |
| Tipo di attacco | DIN |
| Pressione nominale attacco | PN 40 |
| Materiale girante | Stainless steel |
| Tenuta meccanica | HQQE |
| Lunghezza (mm) | 615 mm |
| Altezza (mm) | 200 mm |
| Larghezza (mm) | 599 mm |
| Peso lordo | 1700 kg |
| Peso netto | 1490 kg |
| Approvazioni | CE,UKCA,SEPRO |
| Codice motore | 92898769 |
| Codice EAN | 5715121360333 |

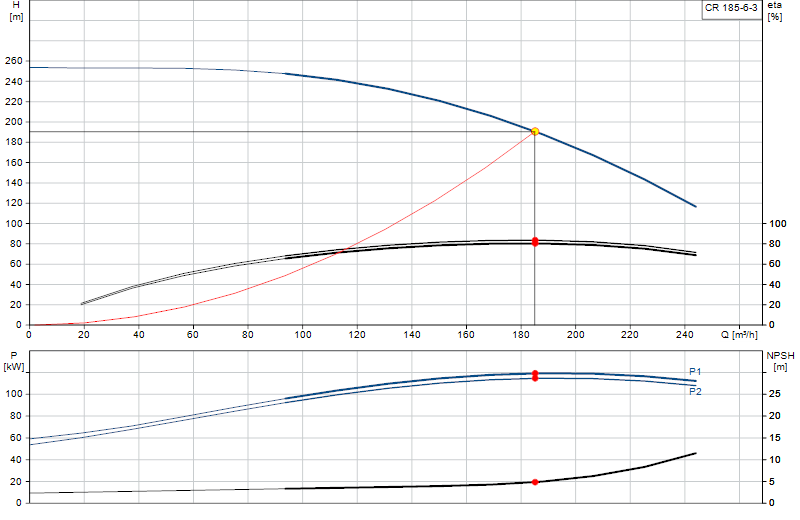

Curva di prestazione
Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
