Specifiche tecniche
| Portata nominale (m³/h) | 12.3 m³/h |
| Prevalenza nominale (m) | 25.1 m |
| Fasi | 1 |
| Tensione nominale | 200-240 V |
| Frequenza (Hz) | 50 Hz |
| Grado di protezione | IP55 |
| Classe di isolamento | F |
| Convertitore di frequenza | Built-in |
| Temperatura liquido max (°C) | 60 °C |
| Temperatura liquido min (°C) | 0 °C |
| Temperatura ambiente max (°C) | 55 °C |
| Pressione max di esercizio | 10 bar |
| Pressione nominale attacco | PN 10 |
| Materiale corpo pompa | Stainless steel |
| Materiale girante | Stainless steel |
| Tenuta meccanica | AVBE |
| Lunghezza (mm) | 380 mm |
| Altezza (mm) | 90 mm |
| Larghezza (mm) | 212 mm |
| Peso lordo | 32 kg |
| Peso netto | 21.8 kg |
| Approvazioni | CE,EAC,CN ROHS EXE,MORO,UKCA |
| Codice EAN | 5711494037926 |

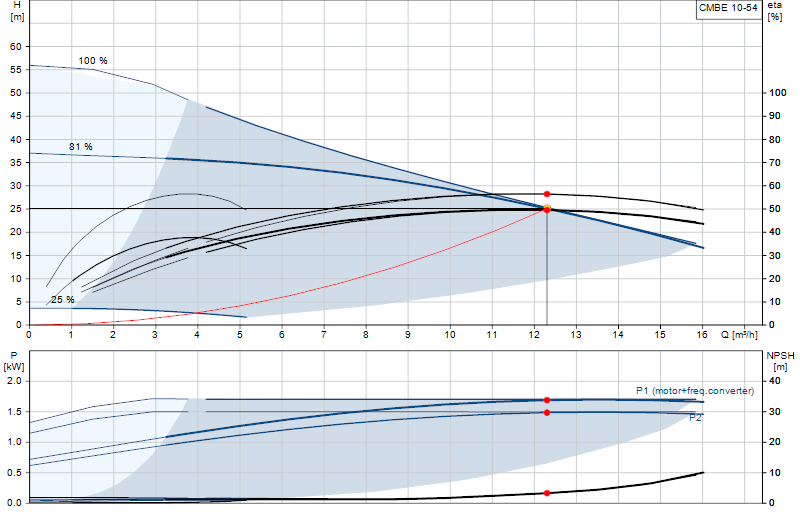

Curva di prestazione
Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
Documenti e datasheet
-
CMB, CMBE and CMBE TWIN (Data booklet)
Data booklets · English 7,7 MB -
MGE (Data sheet)
Data sheets · English 0,5 MB -
CMB PM, CMB PT, CMBE (Installation and operating instructions)
Installation & operating instructions · English 2,0 MB -
CMB, CMB-SP Booster PM1, PM2 (Installation and operating instructions)
Installation & operating instructions · English 0,7 MB -
CMBE - With drinking-water approved tank (I & O instructions)
Installation & operating instructions · English 1,5 MB -
CMBE (I & O instructions)
Installation & operating instructions · English 3,9 MB -
CMBE TWIN (Safety instructions and other important information)
Installation & operating instructions · English 1,0 MB -
CME Booster (Installation and operating instructions) (GB+ZH+IND version)
Installation & operating instructions · English 14,5 MB -
CME Booster, Safety instructions (GB+AR version)
Installation & operating instructions · English 2,7 MB -
Moroccan declaration of conformity, CMBE (Declaration)
Installation & operating instructions · English 0,2 MB -
CMBE, CMBE TWIN (Quick Guide)
Quick Guides · English 9,1 MB -
CMBE, CMBE TWIN (Quick Guide)
Quick Guides · English 7,2 MB -
RPS Sensors (Quick guide)
Quick Guides · English 2,6 MB -
A Wide Range (English) (Product brochure)
Product Brochures · English 46,4 MB -
CMB and CMBE selection guide
Product Brochures · English 0,6 MB -
CMBE BOOSTER (Product brochure)
Product Brochures · English 1,0 MB -
DCW Quick Selection guide - full with UPA (Product brochure)
Product Brochures · English 1,6 MB -
DCW Quick Selection guide - full without UPA (Product brochure)
Product Brochures · English 1,6 MB -
DOMESTIC COLD WATER FOR PRESSURE BOOSTING (Product brochure)
Product Brochures · English 0,8 MB -
DOMESTIC WATER CATALOGUE - 2020, India version (Product brochure)
Product Brochures · English 18,2 MB -
INTELLIGENT WATER BOOSTING MADE SMARTER (Product brochure)
Product Brochures · English 7,0 MB -
Intelligent water boosting made smarter (Product brochure)
Product Brochures · English 2,4 MB -
Mechanical shaft seals for pumps (Handbook)
Product Brochures · English 6,9 MB -
CM Booster (CMBE, CM PT, CM PS) (Service kit instructions)
Service · English 0,6 MB -
CM, CME and Boosters (Service Kit Catalogue)
Service · English 3,4 MB
Alternative equivalenti
Pompe della stessa classe idraulica di 98382190 (portata e prevalenza equivalenti), disponibili a catalogo.
