Specifiche tecniche
| Portata nominale (m³/h) | 4.7 m³/h |
| Prevalenza nominale (m) | 30.7 m |
| Fasi | 1 |
| Tensione nominale | 220-240 V |
| Frequenza (Hz) | 50 Hz |
| Grado di protezione | IP55 |
| Classe di isolamento | F |
| Temperatura liquido max (°C) | 40 °C |
| Temperatura liquido min (°C) | 0 °C |
| Temperatura ambiente max (°C) | 50 °C |
| Pressione max di esercizio | 10 bar |
| Pressione nominale attacco | PN 10 |
| Materiale corpo pompa | Cast iron |
| Materiale girante | Stainless steel |
| Tenuta meccanica | AVBE |
| Lunghezza (mm) | 363.5 mm |
| Altezza (mm) | 75 mm |
| Larghezza (mm) | 100 mm |
| Peso lordo | 16.7 kg |
| Peso netto | 15 kg |
| Approvazioni | RCM |
| Codice EAN | 5715471046130 |

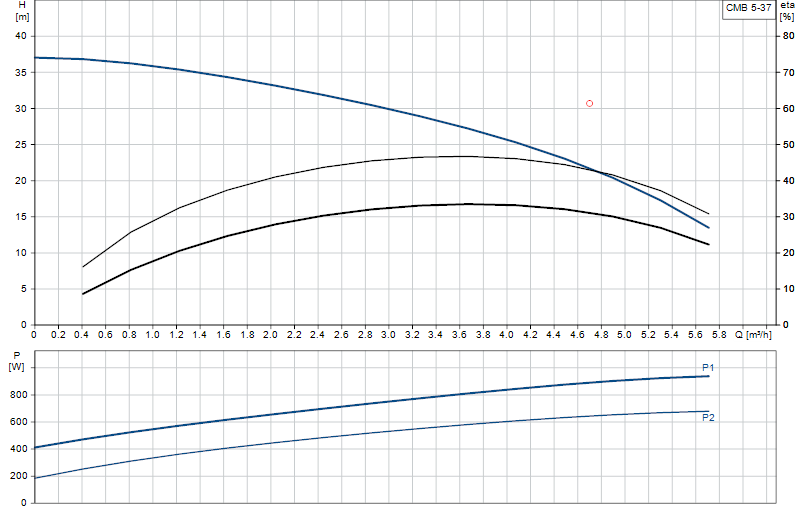

Curva di prestazione
Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
