Specifiche tecniche
| Tipo pompa | CM |
| Indice di efficienza minima (MEI) | 0.7 |
| Fasi | 3 |
| Frequenza (Hz) | 50 Hz |
| Grado di protezione | IP55 |
| Classe di isolamento | F |
| Convertitore di frequenza | None |
| Temperatura liquido max (°C) | 90 °C |
| Temperatura liquido min (°C) | -20 °C |
| Temperatura ambiente max (°C) | 55 °C |
| Pressione max di esercizio | 16 bar |
| Tipo di attacco | Rp |
| Materiale corpo pompa | Stainless steel |
| Materiale girante | Stainless steel |
| Tenuta meccanica | AQQE |
| Lunghezza (mm) | 561 mm |
| Altezza (mm) | 100 mm |
| Peso lordo | 32.6 kg |
| Peso netto | 30.1 kg |
| Approvazioni | CE,EAC,CURUS,UKCA |
| Codice EAN | 5712606368563 |

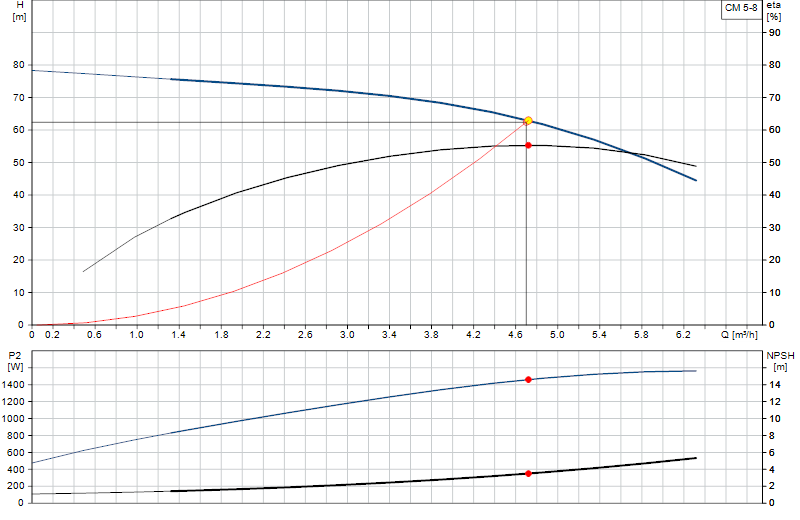

Curva di prestazione
Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
Documenti e datasheet
-
CM, CME (Service instructions)
Service · English 2,4 MB -
IRRIGATION PUMP HANDBOOK (System & Concept brochure)
System & Concept brochures · English 22,3 MB -
CME, CM (Data booklet)
Data booklets · English 37,8 MB -
CM (I & O instructions)
Installation & operating instructions · English 1,2 MB -
Moroccan declaration of conformity, CM, CMV, CM-L (Instruction)
Installation & operating instructions · English 0,2 MB -
CM (Quick Guide)
Quick Guides · English 4,9 MB -
A Wide Range (English) (Product brochure)
Product Brochures · English 46,4 MB -
CM, CME, COMPACT PUMPS FOR DEMANDING APPLICATIONS (Product brochure)
Product Brochures · English 1,1 MB -
DOMESTIC WATER CATALOGUE - 2020, India version (Product brochure)
Product Brochures · English 18,2 MB -
GRUNDFOS CM, Horizontal multi-stage pumps up to 7.5 kW (Product brochure)
Product Brochures · English 3,1 MB -
Industrial Cooling White paper (Product brochure)
Product Brochures · English 0,5 MB -
Industrial Pump Handbook (Handbook)
Product Brochures · English 22,6 MB -
Mechanical shaft seals for pumps (Handbook)
Product Brochures · English 6,9 MB -
PRECISION AND FLEXIBILITY WHERE IT REALLY MATTERS (Product brochure)
Product Brochures · English 3,1 MB -
CM 1, 3, 5, 10, 15, 25 - A / I / G / CMV 3, 5 (Service kit instruction)
Service · English 2,6 MB -
CM, CME (Recommended spare parts) (Service Kit Catalogue)
Service · English 0,1 MB -
CM, CME and Boosters (Service Kit Catalogue)
Service · English 3,4 MB -
CM, CME and Boosters (Service kit catalogue)
Service · English 2,7 MB -
CM, Impeller replacement (Service kit instructions)
Service · English 1,3 MB
