Specifiche tecniche
| Tipo pompa | CM |
| Indice di efficienza minima (MEI) | 0.68 |
| Fasi | 3 |
| Frequenza (Hz) | 50 Hz |
| Grado di protezione | IP55 |
| Classe di isolamento | F |
| Convertitore di frequenza | None |
| Temperatura liquido max (°C) | 40 °C |
| Temperatura liquido min (°C) | -20 °C |
| Temperatura ambiente max (°C) | 55 °C |
| Pressione max di esercizio | 10 bar |
| Tipo di attacco | Rp |
| Materiale corpo pompa | Stainless steel |
| Materiale girante | Stainless steel |
| Tenuta meccanica | AVBE |
| Lunghezza (mm) | 509.8 mm |
| Altezza (mm) | 75 mm |
| Peso lordo | 21.1 kg |
| Peso netto | 18.6 kg |
| Approvazioni | CE,EAC,UKCA |
| Codice EAN | 5712600020757 |

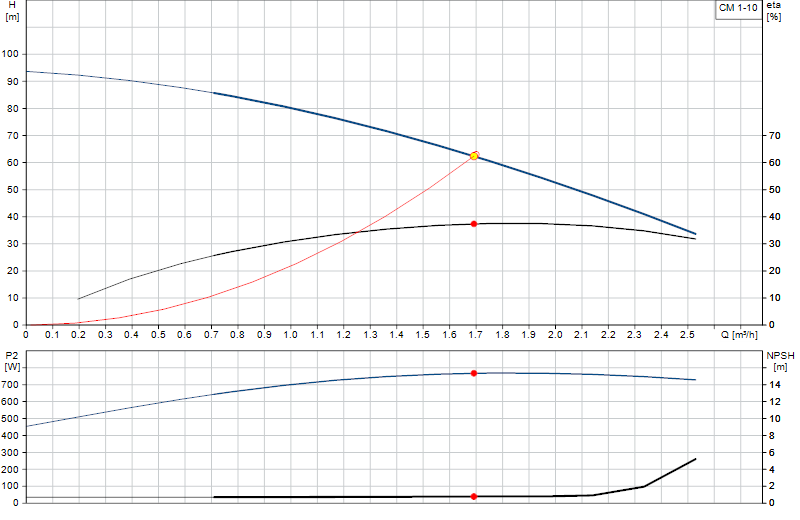

Curva di prestazione
Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
