Specifiche tecniche
| Portata nominale (m³/h) | 113 m³/h |
| Prevalenza nominale (m) | 37 m |
| Numero di stadi | 2 |
| Indice di efficienza minima (MEI) | 0.5 |
| Fasi | 3 |
| Tensione (V) | 380-480 V |
| Frequenza (Hz) | 50 Hz |
| Grado di protezione | IP55 |
| Temperatura liquido max (°C) | 40 °C |
| Temperatura liquido min (°C) | 0 °C |
| Temperatura ambiente max (°C) | 40 °C |
| Materiale girante | Stainless steel |
| Peso lordo | 366 kg |
| Peso netto | 267 kg |
| Approvazioni | CE, TR |
| Codice EAN | 5711496101960 |

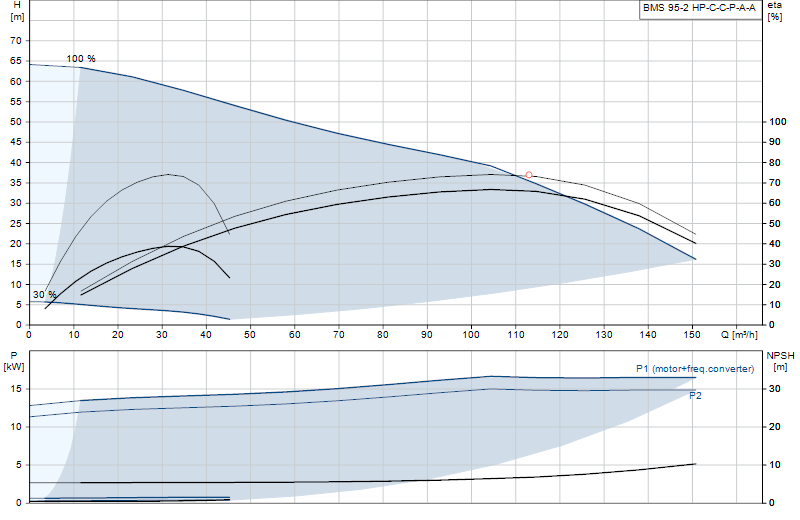

Curva di prestazione
Passa il mouse sulla curva per leggere portata e prevalenza in ogni punto.
Documenti e datasheet
-
BMS (BMS hs, BMS hp, BMST, BMSX)
Service · English 32,0 MB -
BMS (BMS hs, BMS hp, BMS xl, BMSX) (Data booklet)
Data booklets · English 28,5 MB -
BMS, BMS hs, BMS hp and BMSX (I & O instructions)
Installation & operating instructions · English 24,5 MB -
CRE, CRIE, CRNE, CRTE, SPKE, MTRE, CME, BMS hp, MGE 15-22 kW (I & O instructions)
Installation & operating instructions · English 4,8 MB -
CRE, CRIE, CRNE, SPKE, MTRE, CME, BMS - E-pumps with MGE Model J, K motor (Installation and operating instructions)
Installation & operating instructions · English 5,9 MB -
CRE, CRIE, CRNE, SPKE, MTRE, CME, BMS - E-pumps with MGE Model K motor (Safety instructions)
Installation & operating instructions · English 8,3 MB -
BMS/ BMST/ BMSX (Quick Guide)
Quick Guides · English 2,8 MB -
A Wide Range (English) (Product brochure)
Product Brochures · English 46,4 MB -
BMS hs, BMS hp, BMSX RANGES (Product brochure)
Product Brochures · English 5,9 MB -
OPTIMISED WATER SOLUTIONS, India version (Product brochure)
Product Brochures · English 2,5 MB
Alternative equivalenti
Pompe della stessa classe idraulica di 98494520 (portata e prevalenza equivalenti), disponibili a catalogo.
