Spécifications techniques
| Débit nominal (m³/h) | 1.85 l/s |
| Hauteur nominale (m) | 6.56 m |
| Hauteur max. (m) | 9 m |
| Puissance absorbée P1 (W) | 780 W |
| Phases | 1 |
| Tension nominale | 220-240 V |
| Fréquence (Hz) | 50 Hz |
| Indice de protection | IP68 |
| Classe d'isolation | B |
| Temp. liquide max. (°C) | 40 °C |
| Temp. liquide min. (°C) | 0 °C |
| Temp. ambiante max. (°C) | 40 °C |
| Raccordement | R |
| Taille de raccordement | 1 1/4 inch |
| Matériau du corps de pompe | Polypropylene |
| Matériau de la roue | Composite |
| Poids brut | 7.7 kg |
| Poids net | 6.94 kg |
| Homologations | CE,LGA,VDE,UKCA,SEPRO |
| Code EAN | 5711498431331 |

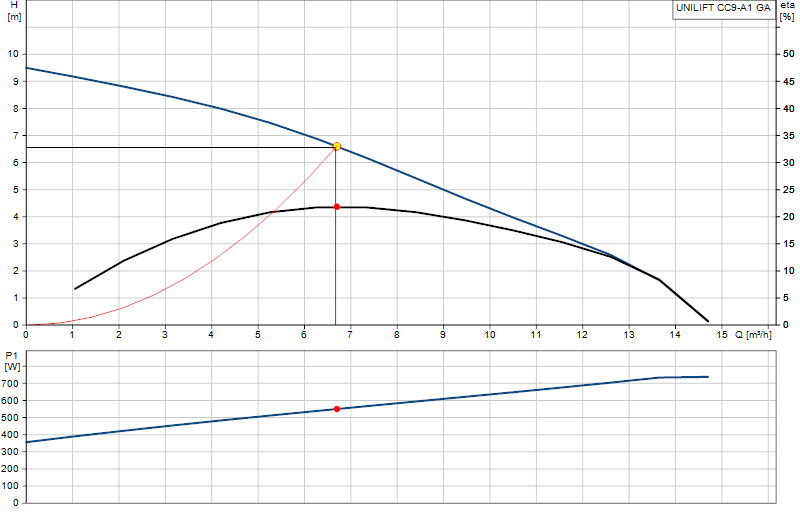

Courbe de performance
Survolez la courbe pour lire le débit et la hauteur en chaque point.
