Spécifications techniques
| Type de pompe | TPE3 |
| Débit nominal (m³/h) | 293.7 m³/h |
| Hauteur nominale (m) | 21.08 m |
| Indice de rendement minimal (MEI) | 0.7 |
| Puissance P2 (kW) | 22 kW |
| Phases | 3 |
| Tension (V) | 380-480 V |
| Fréquence (Hz) | 50 / 60 Hz |
| Indice de protection | IP55 |
| Convertisseur de fréquence | Built-in |
| Temp. liquide max. (°C) | 120 °C |
| Temp. liquide min. (°C) | -25 °C |
| Temp. ambiante max. (°C) | 50 °C |
| Pression de service max. | 16 bar |
| Raccordement | DIN |
| Pression nominale du raccord | PN 16 |
| Entraxe (mm) | 800 mm |
| Matériau du corps de pompe | Cast iron |
| Matériau de la roue | Cast iron |
| Garniture mécanique | BQQE |
| Longueur (mm) | 800 mm |
| Hauteur (mm) | 215 mm |
| Poids brut | 778 kg |
| Poids net | 736 kg |
| Référence moteur | 92924831 |
| Code EAN | 5715471149466 |

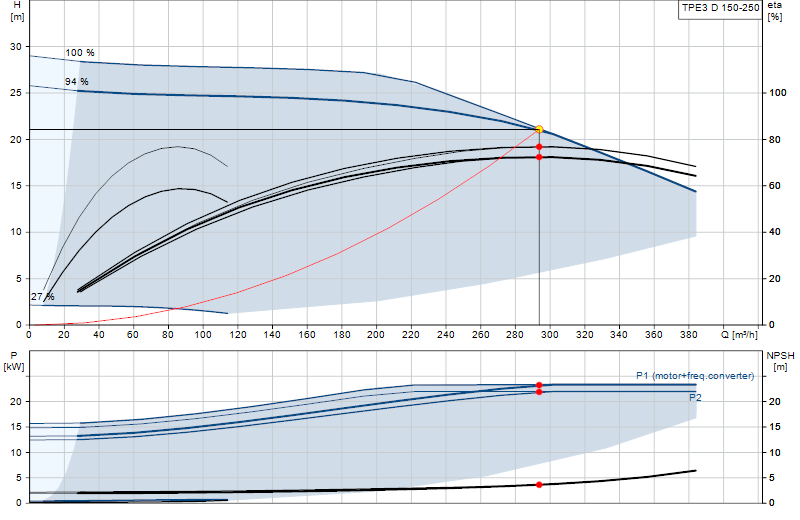

Courbe de performance
