Spécifications techniques
| Type de pompe | TPE |
| Débit nominal (m³/h) | 145.6 m³/h |
| Hauteur nominale (m) | 13.03 m |
| Indice de rendement minimal (MEI) | 0.7 |
| Puissance P2 (kW) | 7.5 kW |
| Phases | 3 |
| Tension (V) | 380-500 V |
| Fréquence (Hz) | 50 Hz |
| Indice de protection | IP55 |
| Convertisseur de fréquence | Built-in |
| Temp. liquide max. (°C) | 140 °C |
| Temp. liquide min. (°C) | 0 °C |
| Temp. ambiante max. (°C) | 50 °C |
| Pression de service max. | 25 bar |
| Raccordement | DIN |
| Pression nominale du raccord | PN 25 |
| Entraxe (mm) | 800 mm |
| Matériau du corps de pompe | Ductile iron |
| Matériau de la roue | Cast iron |
| Garniture mécanique | DAQF |
| Longueur (mm) | 800 mm |
| Hauteur (mm) | 215 mm |
| Poids brut | 262 kg |
| Poids net | 232 kg |
| Référence moteur | 93108548 |
| Code EAN | 5715468495903 |

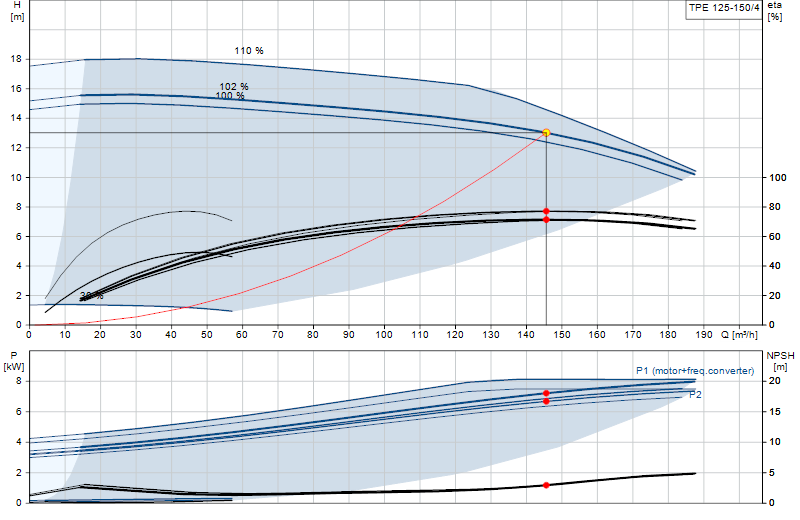

Courbe de performance
