Spécifications techniques
| Type de pompe | TPE |
| Débit nominal (m³/h) | 201.9 m³/h |
| Hauteur nominale (m) | 54.07 m |
| Indice de rendement minimal (MEI) | 0.70 |
| Puissance P2 (kW) | 45 kW |
| Phases | 3 |
| Tension (V) | 380-420D/660-725Y V |
| Fréquence (Hz) | 50 Hz |
| Indice de protection | IP55 |
| Convertisseur de fréquence | Built-in |
| Temp. liquide max. (°C) | 140 °C |
| Temp. liquide min. (°C) | 0 °C |
| Temp. ambiante max. (°C) | 50 °C |
| Pression de service max. | 25 bar |
| Raccordement | DIN |
| Pression nominale du raccord | PN 25 |
| Entraxe (mm) | 670 mm |
| Matériau du corps de pompe | Ductile iron |
| Matériau de la roue | Cast iron |
| Garniture mécanique | DAQF |
| Longueur (mm) | 670 mm |
| Hauteur (mm) | 175 mm |
| Poids brut | 546 kg |
| Poids net | 435 kg |
| Référence moteur | 99454140 |
| Code EAN | 5713829707641 |

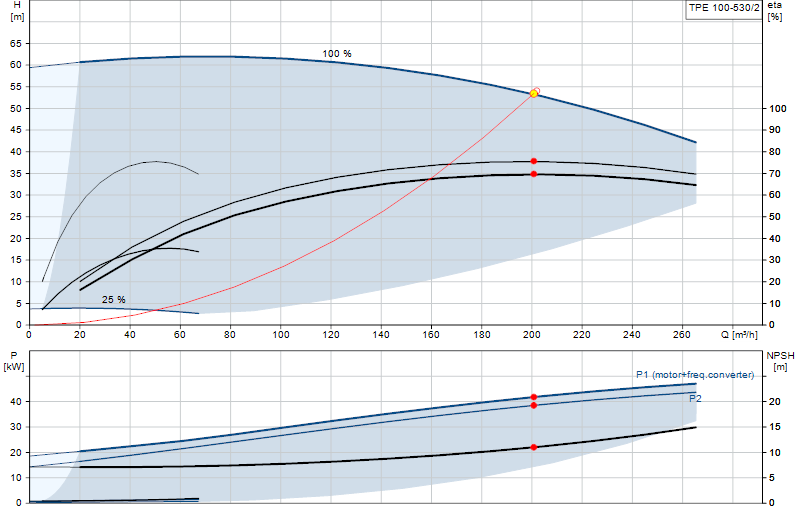

Courbe de performance
Survolez la courbe pour lire le débit et la hauteur en chaque point.
