Spécifications techniques
| Type de pompe | TP |
| Débit nominal (m³/h) | 5.61 m³/h |
| Hauteur nominale (m) | 2.95 m |
| Puissance P2 (kW) | 0.12 kW |
| Phases | 1 |
| Tension (V) | 220-230 V |
| Fréquence (Hz) | 50 Hz |
| Indice de protection | IP55 Dust/Jetting |
| Convertisseur de fréquence | None |
| Temp. liquide max. (°C) | 120 °C |
| Temp. liquide min. (°C) | 0 °C |
| Temp. ambiante max. (°C) | 40 °C |
| Pression de service max. | 10 bar |
| Raccordement | DIN |
| Pression nominale du raccord | PN 6/10 |
| Entraxe (mm) | 250 mm |
| Matériau du corps de pompe | Cast iron |
| Matériau de la roue | Composite |
| Garniture mécanique | BQBE |
| Longueur (mm) | 250 mm |
| Hauteur (mm) | 67 mm |
| Poids brut | 15.4 kg |
| Poids net | 13.4 kg |
| Référence moteur | 92613975 |
| Code EAN | 5712608960536 |

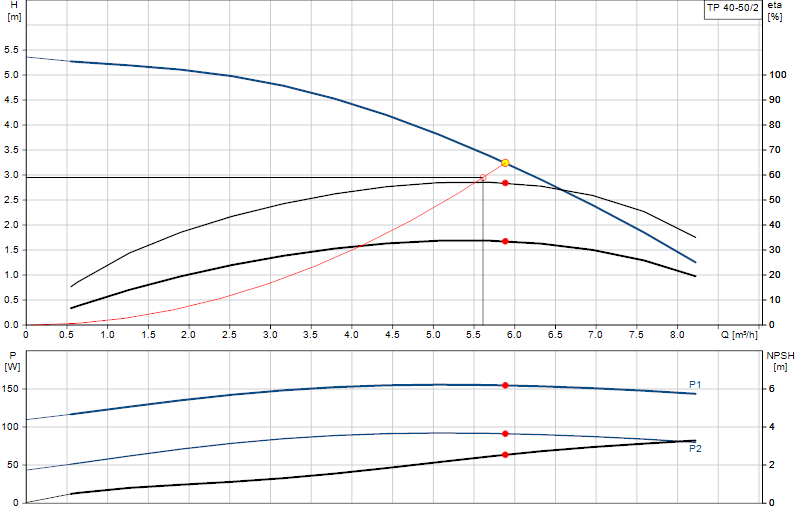

Courbe de performance
Survolez la courbe pour lire le débit et la hauteur en chaque point.
