Spécifications techniques
| Type de pompe | TP |
| Débit nominal (m³/h) | 176.4 m³/h |
| Hauteur nominale (m) | 27.72 m |
| Indice de rendement minimal (MEI) | 0.70 |
| Puissance P2 (kW) | 18.5 kW |
| Phases | 3 |
| Tension (V) | 200DD/400D V |
| Fréquence (Hz) | 50 Hz |
| Indice de protection | IP55 (Protect. water jets/dust) |
| Convertisseur de fréquence | None |
| Temp. liquide max. (°C) | 120 °C |
| Temp. liquide min. (°C) | -25 °C |
| Temp. ambiante max. (°C) | 60 °C |
| Pression de service max. | 14 bar |
| Raccordement | JIS |
| Pression nominale du raccord | 10K |
| Entraxe (mm) | 800 mm |
| Matériau du corps de pompe | Cast iron |
| Matériau de la roue | Cast iron |
| Garniture mécanique | BQQE |
| Longueur (mm) | 800 mm |
| Hauteur (mm) | 215 mm |
| Poids brut | 416 kg |
| Poids net | 384 kg |
| Référence moteur | 98787216 |
| Code EAN | 5712608938306 |

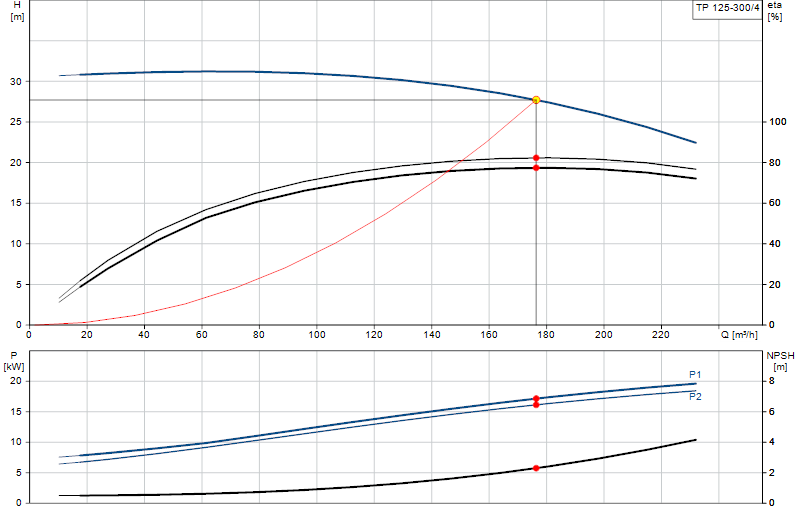

Courbe de performance
Survolez la courbe pour lire le débit et la hauteur en chaque point.
Documents et fiches techniques
-
TP series 100 & 200 (Service instructions)
Service · English 0,7 MB -
TP Series 400 (Service Instructions)
Service · English 0,9 MB -
TP, TPD, TPE, TPED Series 300 (Service Instructions)
Service · English 1,1 MB -
TP (China)
Data booklets · English 7,4 MB -
TP, TPD, TPE, TPED, TPE2, TPE2 D, TPE3, TPE3 D, In-line circulator pumps (Data booklet)
Data booklets · English 29,6 MB -
NB, NBG, NK, NKG, TP, TPD, ATEX-approved pumps (Safety instructions)
Installation & operating instructions · English 0,8 MB -
NB, NBG, TP, TPD, ATEX-approved pumps (Installation and operating instructions)
Installation & operating instructions · English 1,4 MB -
TP (Series 400) (Installation and operating instructions)
Installation & operating instructions · English 6,8 MB -
TP, TPD (GB version) (Installation and operating instructions)
Installation & operating instructions · English 3,3 MB -
TP, TPD (I & O instructions)
Installation & operating instructions · English 1,5 MB -
TP, TPD (Safety instructions)
Installation & operating instructions · English 5,2 MB -
TPE2 (D),TPE3 (D) (Installation and operating instructions)
Installation & operating instructions · English 6,6 MB -
A Wide Range (English) (Product brochure)
Product Brochures · English 46,4 MB -
Beverage application pumps - Refresh your business with Grundfos (Product brochure)
Product Brochures · English 5,8 MB -
Food application pumps - Nourish your business with Grundfos (Product brochure)
Product Brochures · English 3,4 MB -
GRUNDFOS DISTRICT HEATING (Product brochure)
Product Brochures · English 7,5 MB -
Grundfos Industrial Solutions - Marine pumps (Product brochure)
Product Brochures · English 1,4 MB -
GRUNDFOS MPC, Taking your pump system efficiency to new heights (Product brochure)
Product Brochures · English 1,0 MB -
Industrial Cooling White paper (Product brochure)
Product Brochures · English 0,5 MB -
Industrial Pump Handbook (Handbook)
Product Brochures · English 22,6 MB -
Mechanical shaft seals for pumps (Handbook)
Product Brochures · English 6,9 MB -
OPTIMISED WATER SOLUTIONS, India version (Product brochure)
Product Brochures · English 2,5 MB -
Process Driven Engineering (Leaflet)
Product Brochures · English 5,7 MB -
PROFESSIONAL PUMPS AND SOLUTIONS, India version (Product brochure)
Product Brochures · English 43,0 MB -
PUMPS FOR BIOETHANOL AND BIODIESEL (Product brochure)
Product Brochures · English 1,1 MB -
TP, TPE (25 BAR RANGE) (Product brochure)
Product Brochures · English 2,5 MB -
TP/TPE (Product brochure)
Product Brochures · English 3,8 MB -
TP Series 400 / TP series 300 DN400 - Shaft seal (Service kit instruction)
Service · English 0,3 MB -
TP, TPE, TPD, TPED (Recommended spare parts) (Service Kit Catalogue)
Service · English 0,4 MB -
TP, TPE, TPD, TPED (Service Kit Catalogue)
Service · English 1,3 MB
