Spécifications techniques
| Type de pompe | SP60 |
| Nombre d'étages | 28 |
| Indice de rendement minimal (MEI) | 0.40 |
| Puissance P2 (kW) | 55 kW |
| Phases | 3 |
| Tension (V) | 220-230 V |
| Fréquence (Hz) | 50 Hz |
| Indice de protection | IP68 |
| Temp. liquide max. (°C) | 45 °C |
| Temp. liquide min. (°C) | -15 °C |
| Pression de service max. | 60 bar |
| Raccordement | R |
| Taille de raccordement | 4 inch |
| Matériau de la roue | Stainless steel |
| Poids brut | 396 kg |
| Poids net | 299 kg |
| Homologations | CE,EAC,UKCA,SEPRO,MOROCCO |
| Référence moteur | 92689370 |
| Code EAN | 5700395631999 |

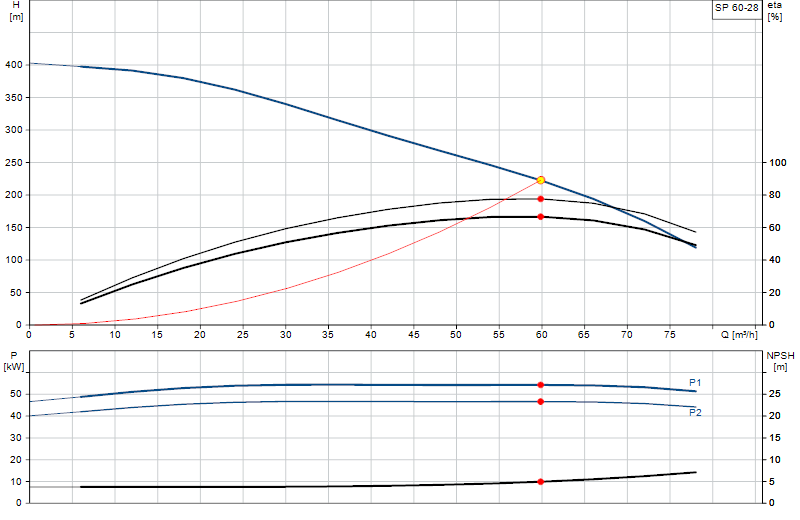

Courbe de performance
Survolez la courbe pour lire le débit et la hauteur en chaque point.
