Spécifications techniques
| Type de pompe | SP32 |
| Nombre d'étages | 23 |
| Indice de rendement minimal (MEI) | 0.70 |
| Puissance P2 (kW) | 22 kW |
| Phases | 3 |
| Tension (V) | 220-230 V |
| Fréquence (Hz) | 50 Hz |
| Indice de protection | IP68 |
| Temp. liquide max. (°C) | 40 °C |
| Temp. liquide min. (°C) | -15 °C |
| Pression de service max. | 60 bar |
| Raccordement | Rp |
| Taille de raccordement | 3 inch |
| Matériau de la roue | Stainless steel |
| Poids brut | 162 kg |
| Poids net | 117 kg |
| Homologations | CE,EAC,UKCA,SEPRO,MOROCCO |
| Référence moteur | 78105618 |
| Code EAN | 5715467805550 |

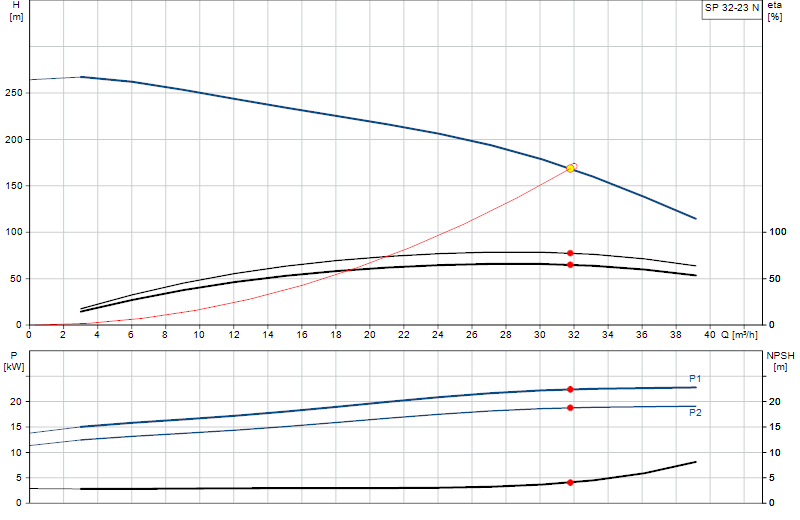

Courbe de performance
Survolez la courbe pour lire le débit et la hauteur en chaque point.
