Spécifications techniques
| Type de pompe | SP160 |
| Nombre d'étages | 4 |
| Fréquence (Hz) | 50 Hz |
| Temp. liquide max. (°C) | 60 °C |
| Temp. liquide min. (°C) | -15 °C |
| Pression de service max. | 60 bar |
| Raccordement | Rp |
| Taille de raccordement | 6 inch |
| Matériau de la roue | Stainless steel |
| Poids brut | 82.4 kg |
| Poids net | 55 kg |
| Homologations | CE,EAC,UKCA,SEPRO,MOROCCO |
| Code EAN | 5700392248800 |

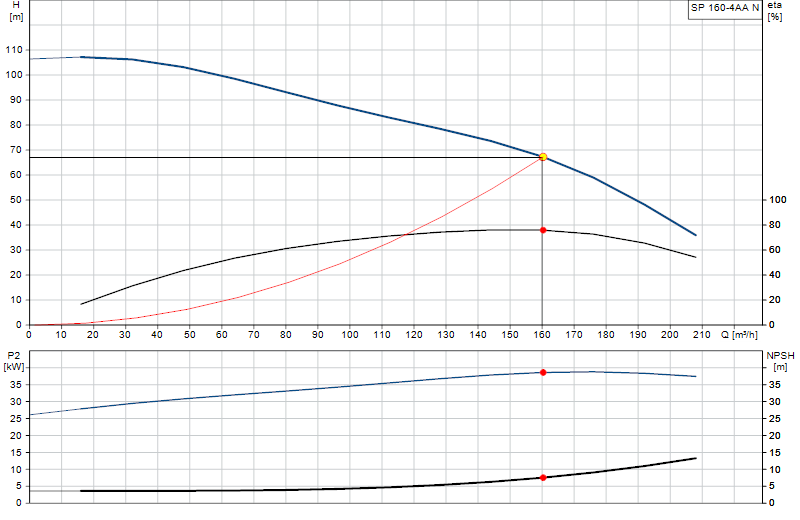

Courbe de performance
Survolez la courbe pour lire le débit et la hauteur en chaque point.
