Spécifications techniques
| Hauteur max. (m) | 29 m |
| Phases | 3 |
| Tension nominale | 380-415/660-690 V |
| Fréquence (Hz) | 50 Hz |
| Indice de protection | IP68 |
| Classe d'isolation | H |
| Temp. liquide max. (°C) | 40 °C |
| Temp. liquide min. (°C) | 10 °C |
| Temp. ambiante max. (°C) | 40 °C |
| Pression de service max. | 8 bar |
| Matériau du corps de pompe | Cast iron |
| Matériau de la roue | Cast iron |
| Poids brut | 316 kg |
| Poids net | 288 kg |
| Homologations | CE,EAC,RCM |
| Code EAN | 5713834101021 |

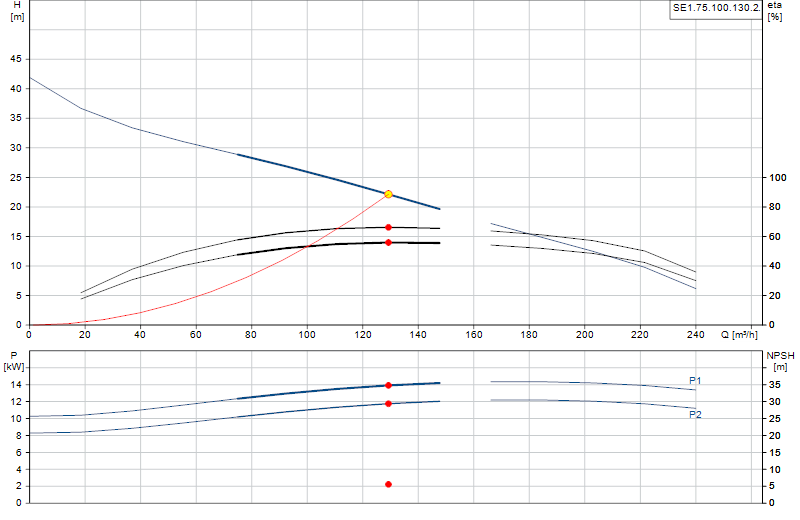

Courbe de performance
Survolez la courbe pour lire le débit et la hauteur en chaque point.
