Spécifications techniques
| Hauteur max. (m) | 23 m |
| Phases | 3 |
| Tension (V) | 380-415/660-719 V |
| Fréquence (Hz) | 50 Hz |
| Courant nominal max. (A) | 508 A |
| Indice de protection | IP68 |
| Classe d'isolation | F |
| Temp. liquide max. (°C) | 40 °C |
| Temp. liquide min. (°C) | 0 °C |
| Temp. ambiante max. (°C) | 40 °C |
| Raccordement | DIN |
| Pression nominale du raccord | PN 10 |
| Matériau du corps de pompe | Ductile iron |
| Matériau de la roue | Ductile iron |
| Poids brut | 6220 kg |
| Poids net | 5790 kg |
| Code EAN | 5712607793166 |

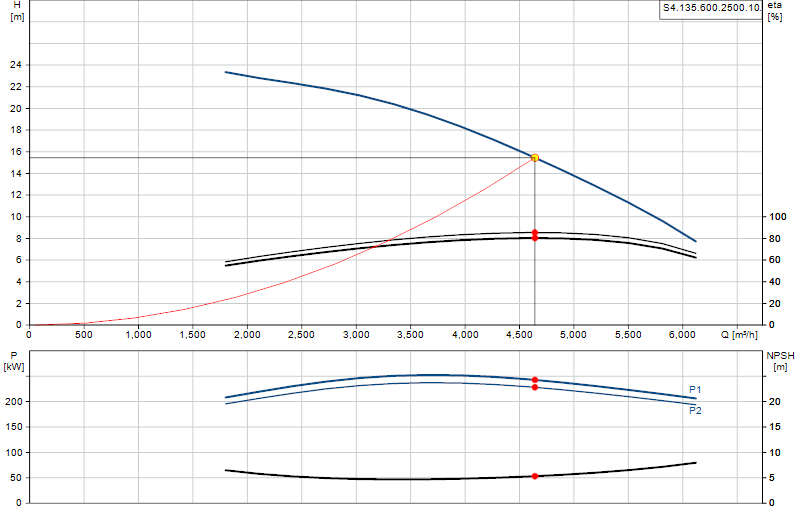

Courbe de performance
Survolez la courbe pour lire le débit et la hauteur en chaque point.
