Spécifications techniques
| Type de pompe | NKE |
| Débit nominal (m³/h) | 181.7 m³/h |
| Hauteur nominale (m) | 40.39 m |
| Indice de rendement minimal (MEI) | 0.65 |
| Puissance P2 (kW) | 30 kW |
| Phases | 3 |
| Tension (V) | 380-420D/660-725Y V |
| Fréquence (Hz) | 50 Hz |
| Indice de protection | IP55 |
| Convertisseur de fréquence | Built-in |
| Temp. liquide max. (°C) | 120 °C |
| Temp. liquide min. (°C) | -25 °C |
| Temp. ambiante max. (°C) | 50 °C |
| Pression de service max. | 16 bar |
| Pression nominale du raccord | PN 16 |
| Matériau du corps de pompe | Cast iron |
| Matériau de la roue | Cast iron |
| Garniture mécanique | BQQE |
| Poids brut | 558 kg |
| Poids net | 503 kg |
| Référence moteur | 92779349 |
| Code EAN | 5715121952729 |

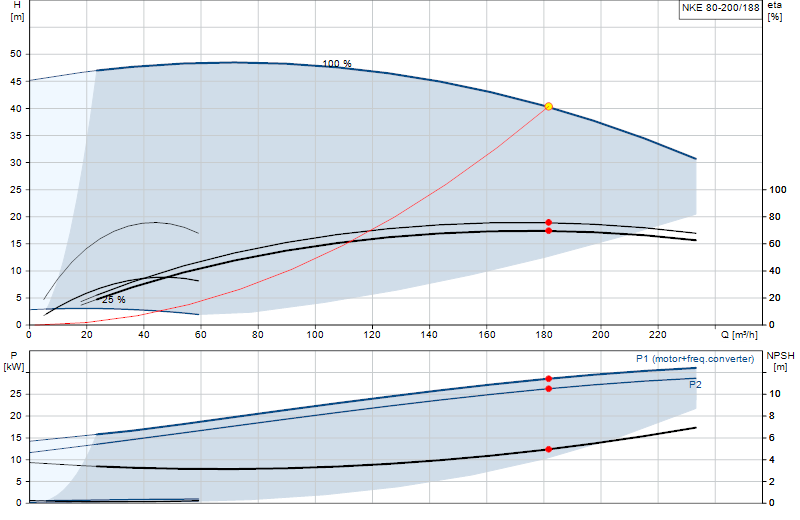

Courbe de performance
Survolez la courbe pour lire le débit et la hauteur en chaque point.
