Spécifications techniques
| Type de pompe | NK |
| Débit nominal (m³/h) | 588.1 m³/h |
| Hauteur nominale (m) | 63.67 m |
| Indice de rendement minimal (MEI) | 0.70 |
| Puissance P2 (kW) | 160 kW |
| Phases | 3 |
| Tension (V) | 380-420D/660-725Y V |
| Fréquence (Hz) | 50 Hz |
| Indice de protection | IP55 |
| Convertisseur de fréquence | None |
| Temp. liquide max. (°C) | 120 °C |
| Temp. liquide min. (°C) | 0 °C |
| Temp. ambiante max. (°C) | 55 °C |
| Pression de service max. | 10 bar |
| Pression nominale du raccord | PN 10 |
| Matériau du corps de pompe | Cast iron |
| Matériau de la roue | Cast iron |
| Garniture mécanique | BAQE |
| Poids brut | 2070 kg |
| Poids net | 1970 kg |
| Référence moteur | 92910053 |
| Code EAN | 5711492934708 |

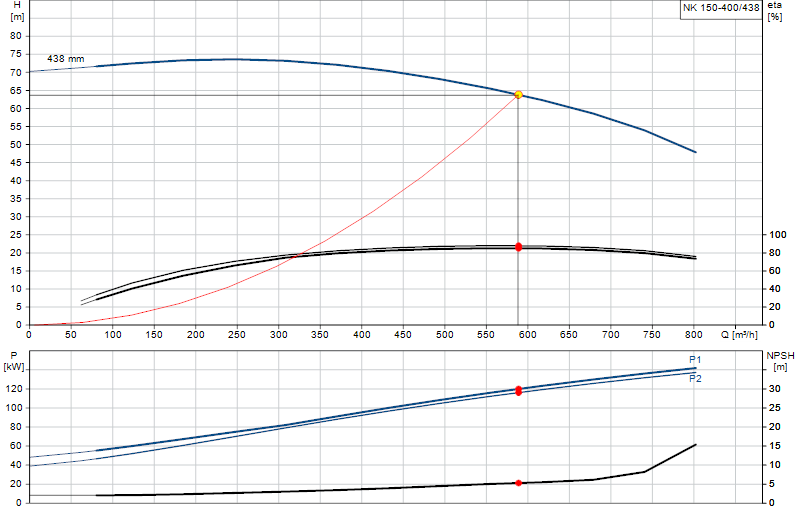

Courbe de performance
Survolez la courbe pour lire le débit et la hauteur en chaque point.
