Spécifications techniques
| Type de pompe | MTS |
| Puissance P2 (kW) | 18.5 kW |
| Phases | 3 |
| Tension (V) | 200DD/400D V |
| Fréquence (Hz) | 50 Hz |
| Indice de protection | IP55 (Protect. water jets/dust) |
| Convertisseur de fréquence | None |
| Temp. liquide max. (°C) | 80 °C |
| Temp. ambiante max. (°C) | 60 °C |
| Garniture mécanique | DQ |
| Poids net | 137 kg |
| Homologations | CE |
| Référence moteur | 98786789 |
| Code EAN | 5715123535487 |

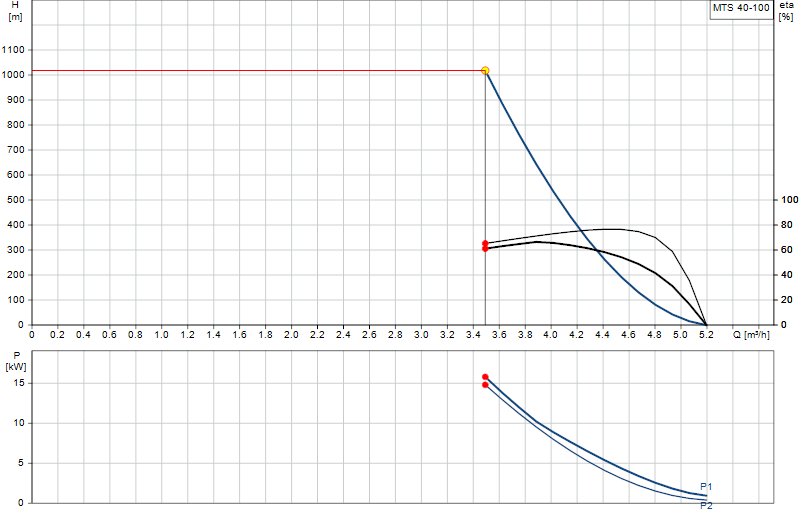

Courbe de performance
Survolez la courbe pour lire le débit et la hauteur en chaque point.
