Spécifications techniques
| Débit nominal (m³/h) | 24.66 m³/h |
| Hauteur nominale (m) | 7.51 m |
| Indice d'efficacité énergétique (EEI) | 0.18 |
| Phases | 1 |
| Tension nominale | 230 V |
| Fréquence (Hz) | 50 / 60 Hz |
| Courant nominal max. (A) | 3.47 A |
| Indice de protection | IPX4D |
| Classe d'isolation | F |
| Temp. liquide max. (°C) | 110 °C |
| Temp. liquide min. (°C) | -10 °C |
| Temp. ambiante max. (°C) | 40 °C |
| Pression de service max. | 10 bar |
| Raccordement | DIN |
| Pression nominale du raccord | PN 6/10 |
| Entraxe (mm) | 340 mm |
| Matériau du corps de pompe | Cast iron |
| Matériau de la roue | Composite |
| Poids brut | 46.6 kg |
| Poids net | 40.1 kg |
| Homologations | CE,VDE,EAC,MOROCCO,UKCA,TSE, |
| Code EAN | 5710626495719 |

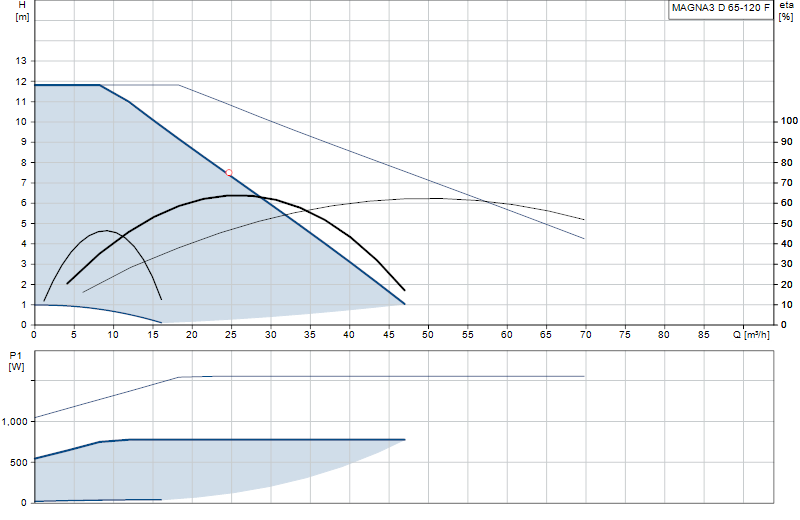

Courbe de performance
