Spécifications techniques
| Débit nominal (m³/h) | 2981 m³/h |
| Hauteur nominale (m) | 132.2 m |
| Puissance P2 (kW) | 710 kW |
| Phases | 3 |
| Tension (V) | 10000 V |
| Fréquence (Hz) | 50 Hz |
| Indice de protection | IP55 (Protect. water jets/dust) |
| Temp. liquide max. (°C) | 100 °C |
| Temp. liquide min. (°C) | 0 °C |
| Temp. ambiante max. (°C) | 40 °C |
| Pression de service max. | 16 bar |
| Pression nominale du raccord | PN 16 |
| Matériau de la roue | Stainless steel |
| Garniture mécanique | ABQE |
| Poids brut | 13100 kg |
| Poids net | 12100 kg |
| Homologations | CE |
| Référence moteur | 99760800 |
| Code EAN | 5713833951269 |

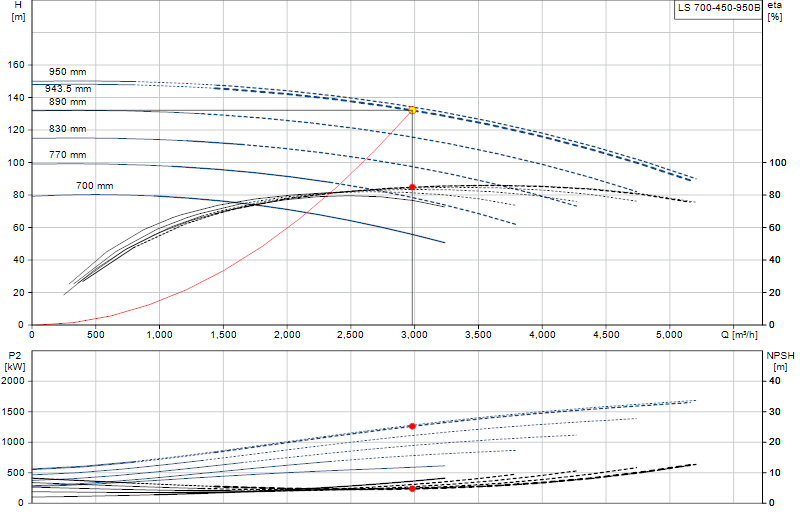

Courbe de performance
Survolez la courbe pour lire le débit et la hauteur en chaque point.
