Spécifications techniques
| Débit nominal (m³/h) | 84 m³/h |
| Hauteur nominale (m) | 34.6 m |
| Phases | 3 |
| Tension nominale | 380-415 V |
| Fréquence (Hz) | 50 Hz |
| Indice de protection | IP54 |
| Temp. liquide max. (°C) | 60 °C |
| Temp. liquide min. (°C) | 5 °C |
| Poids brut | 486 kg |
| Poids net | 442 kg |
| Code EAN | 5700835166203 |

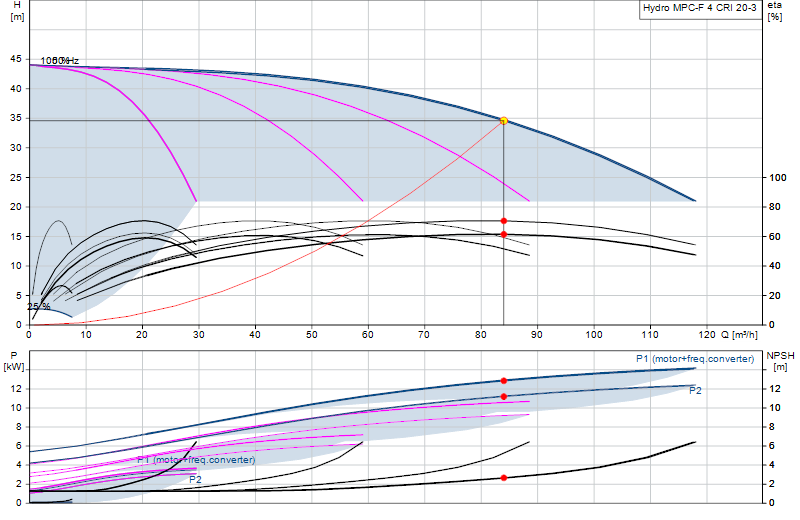

Courbe de performance
Survolez la courbe pour lire le débit et la hauteur en chaque point.
