Spécifications techniques
| Débit nominal (m³/h) | 66.7 l/s |
| Hauteur nominale (m) | 71 m |
| Hauteur max. (m) | 88.5 m |
| Phases | 3 |
| Tension nominale | 380-415 V |
| Fréquence (Hz) | 50 Hz |
| Indice de protection | IP68 |
| Classe d'isolation | F |
| Temp. liquide max. (°C) | 40 °C |
| Temp. liquide min. (°C) | 0 °C |
| Temp. ambiante max. (°C) | 40 °C |
| Pression de service max. | 5.7 bar |
| Matériau du corps de pompe | Cast iron |
| Matériau de la roue | HI-Chrome |
| Poids brut | 1140 kg |
| Poids net | 1020 kg |
| Code EAN | 5700313725465 |

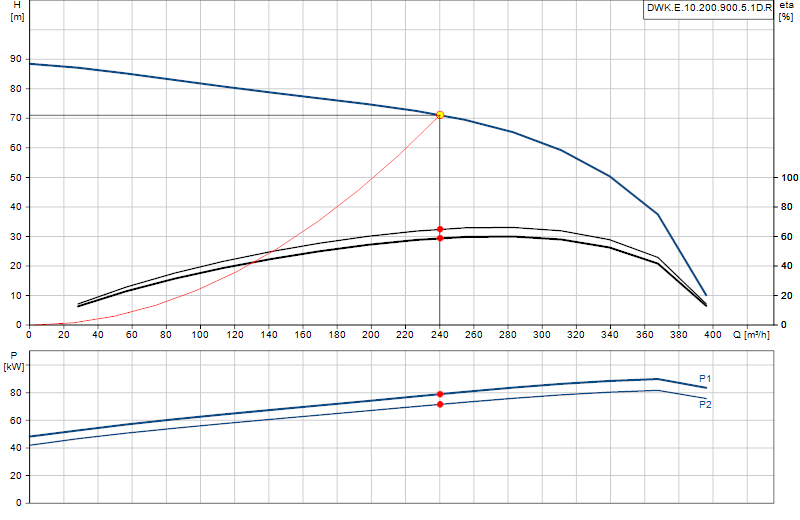

Courbe de performance
Survolez la courbe pour lire le débit et la hauteur en chaque point.
