Spécifications techniques
| Type de pompe | CRN |
| Débit nominal (m³/h) | 155 m³/h |
| Hauteur nominale (m) | 196.2 m |
| Hauteur max. (m) | 263.7 m |
| Nombre d'étages | 7 |
| Indice de rendement minimal (MEI) | 0.70 |
| Puissance P2 (kW) | 110 kW |
| Phases | 3 |
| Tension (V) | 380-420D/660-725Y V |
| Fréquence (Hz) | 50 Hz |
| Indice de protection | IP55 |
| Convertisseur de fréquence | None |
| Temp. liquide max. (°C) | 120 °C |
| Temp. liquide min. (°C) | -20 °C |
| Temp. ambiante max. (°C) | 55 °C |
| Pression de service max. | 40 bar |
| Raccordement | DIN |
| Pression nominale du raccord | PN 25/40 |
| Matériau de la roue | Stainless steel |
| Garniture mécanique | HQQE |
| Longueur (mm) | 485 mm |
| Hauteur (mm) | 180 mm |
| Largeur (mm) | 499 mm |
| Poids brut | 1500 kg |
| Poids net | 1280 kg |
| Homologations | CE,UKCA,SEPRO |
| Référence moteur | 92898768 |
| Code EAN | 5715121359405 |

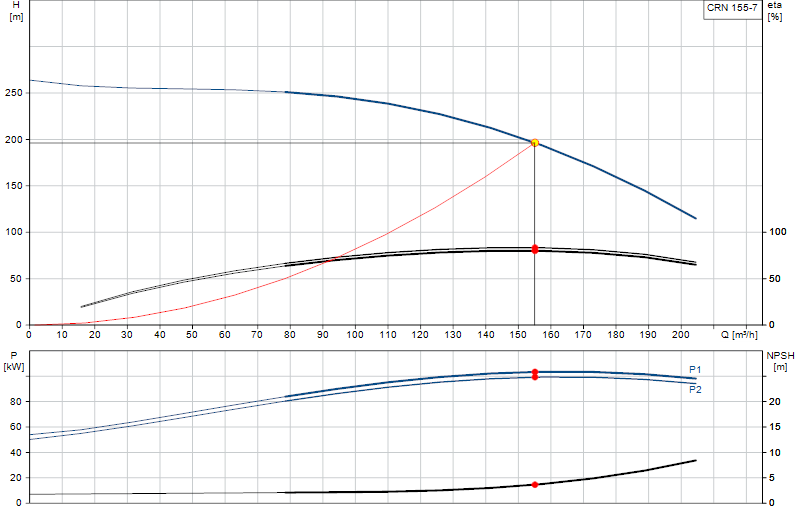

Courbe de performance
Survolez la courbe pour lire le débit et la hauteur en chaque point.
